Description
Specifications
KEY SPECIFICATIONS

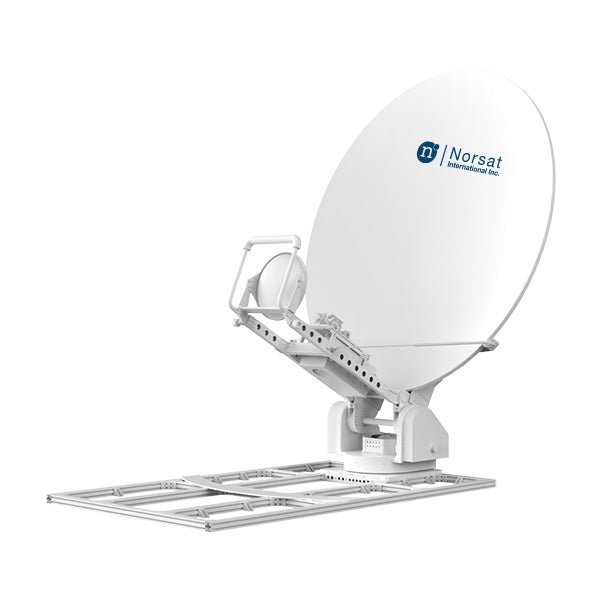

| antenna aperture | 2.4m |
|---|---|
| antenna category | Drive Away |
| band | C-Band |
| number of onboard LOs | Single-Band |
| Product Revision | A |
ANTENNA SPECIFICATIONS
| antenna type | Single Offset |
|---|---|
| azimuth angle | ± 185° |
| cross polarization isolation | ≥35 dB |
| elevation angle | -3° – 45° |
| initial auto acquisition time | ≤ 3min |
| polarization | Linear |
| sidelobe | First sidelobe ≤ -17 dB |
RF SPECIFICATIONS
| port isolation Rx-Tx | 85 dB |
|---|---|
| port isolation Tx-Rx | 85 dB |
| power capacity | 1500 W |
| Rx frequency | Low: 4.40 – 5.00 GHz; High: 5.90 – 6.50 GHz |
| rx gain | ≥ 38dBi+20lg(f/4.4GHz)dBi |
| Rx interface | WR159 |
| Rx VSWR | ≤ 1.5：1 |
| Tx frequency | Low: 4.40 – 5.00 GHz; High: 5.90 – 6.50 GHz |
| tx gain | ≥ 38dBi+20lg(f/4.4GHz)dBi |
| Tx interface | WR159 |
| Tx VSWR | ≤ 1.5：1 |
INTERFACE SPECIFICATIONS
| positioning mode | GPS/BD |
|---|
ENVIRONMENTAL SPECIFICATIONS
| humidity | 95% (20℃) |
|---|---|
| IP rating | IP 65 |
| temperature operational | -40°C to +55°C |
| temperature storage | -45°C to +55°C |
| windspeed operational | ≤ 20m/s |
| windspeed survival | ≤ 25m/s |
PHYSICAL SPECIFICATIONS
| color | White |
|---|---|
| default cable (included) | Power supply, RF cable and Communication Cable |
| default cable length | 10m |
| product weight | ≤ 350 kg (excluding power amplifier, LNB, packaging and accessories, etc.) |
| RMS | 0.3dB |
INFORMATION
| HS Code | 8517710000 |
|---|---|
| Country of Origin | Made in China |
| Ex Works | Hong Kong |
| ECCN Number | EAR99 |
| Warranty | 1 year |
| Dangerous Goods | – |
| Unit Package Dimensions | – |
| Unit Package Weight | – |
| Total Aluminium Content | 0 kg |
| Aluminum Country of Smelt and Cast | – |
| Total Aluminium Value | $ 0 |
