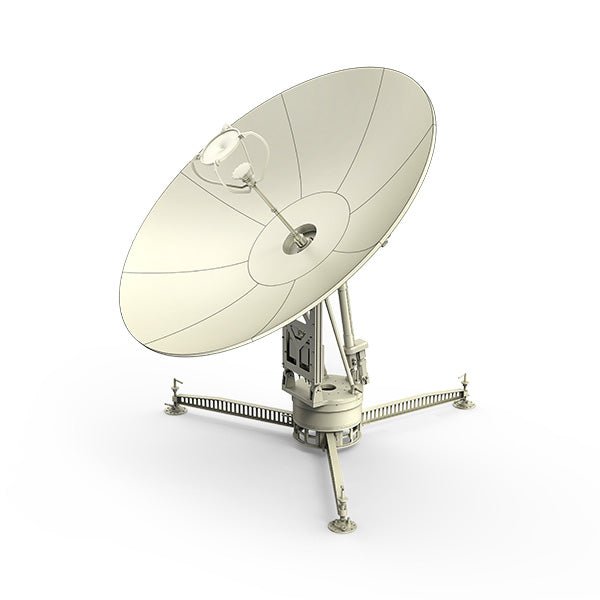

WAYFARER 2.4m C-Band Auto Flyaway Antenna – Ring Focus
¥137,500.00
acquisition and tracking: Automatic
Description
Specifications
KEY SPECIFICATIONS
| acquisition and tracking | Automatic |
|---|---|
| antenna aperture | 2.4m |
| antenna category | Flyaway |
| band | C-Band |
| number of onboard LOs | Single-Band |
| Product Revision | A |
ANTENNA SPECIFICATIONS
| antenna type | Ring Focus |
|---|---|
| azimuth angle | ±220° |
| azimuth velocity | 0.1°/s～3°/s |
| blockage recovery time | ≤1min |
| cross polarization isolation | ≥30 dB |
| elevation angle | 0° – 90° |
| elevation veolcity | 0.1°/s～1°/s |
| initial auto acquisition time | ≤3min |
| polarization | Linear |
| polarization range | ±90° |
| polarization velocity | 0.1°/s～3°/s |
| sidelobe | ≤-14dB |
RF SPECIFICATIONS
| port isolation Rx-Tx | ≥85dB |
|---|---|
| port isolation Tx-Rx | ≥40dB |
| power capacity | ≤500W |
| Rx frequency | 3.40 – 4.20 GHz |
| rx gain | 37+20lg(f/3.8) |
| Rx interface | WR229 |
| Rx VSWR | ≤ 1.50 : 1 |
| Tx frequency | 5.85 – 6.725 GHz |
| tx gain | 41+20lg(f/6.3) |
| Tx interface | WR137 |
| Tx VSWR | ≤ 1.50 : 1 |
ELECTRICAL SPECIFICATIONS
| power supply | 220 VAC ± 10 50Hz ± 2Hz; ≤350W (not include BUC) |
|---|
ENVIRONMENTAL SPECIFICATIONS
| humidity | 95%（20°C） |
|---|---|
| IP rating | IP65 |
| temperature operational | -40°C to +60°C |
| temperature storage | -55℃ to +70℃ |
| windspeed operational | 13m/s |
| windspeed survival | 20m/s |
PHYSICAL SPECIFICATIONS
| color | White |
|---|---|
| default cable (included) | Power supply, network cable, RF Cable |
| default cable length | 5 m |
| number of cases | 4 |
| packed by | wood crate and aluminium shipping case |
| product height | 5800 mm |
| product length | 2700 mm |
| product weight | 160 kg |
| product width | 2700 mm |
INFORMATION
| HS Code | 8529109090 |
|---|---|
| Country of Origin | Made in China |
| Ex Works | Hong Kong |
| ECCN Number | EAR99 |
| Warranty | 1 year |
| Dangerous Goods | – |
| Unit Package Dimensions | 1020*1080*580 1240*600*350 1150*570*430 900*550*430(mm) |
| Unit Package Weight | 255kg |
| Total Aluminium Content | 0 kg |
| Aluminum Country of Smelt and Cast | – |
| Total Aluminium Value | $ 0 |
