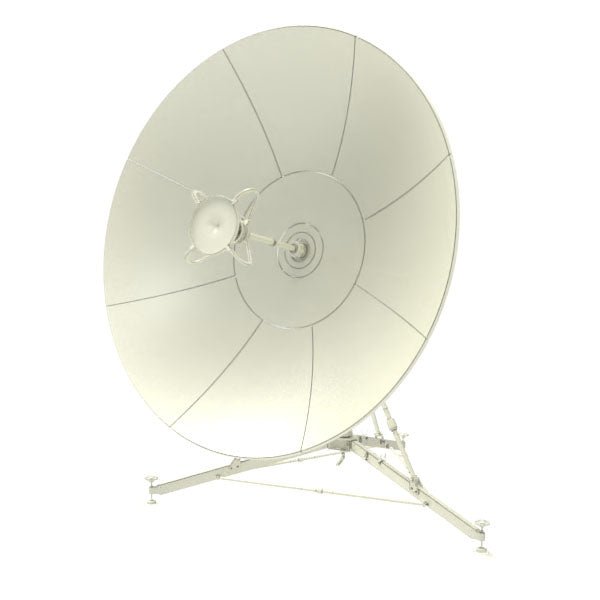

WAYFARER 1.8m Ku-Band Manual Flyaway Antenna – Ring Focus
¥55,000.00
acquisition and tracking: Manual
Description
Specifications
KEY SPECIFICATIONS
| acquisition and tracking | Manual |
|---|---|
| antenna aperture | 1.8m |
| antenna category | Flyaway |
| band | Ku-Band |
| number of onboard LOs | Single-Band |
| Product Revision | A |
ANTENNA SPECIFICATIONS
| antenna type | Ring Focus |
|---|---|
| azimuth angle | ±180° |
| cross polarization isolation | ≥30 dB |
| elevation angle | 0° – 90° |
| polarization | Linear |
| polarization range | ±90° |
| sidelobe | ≤ -14 dB |
RF SPECIFICATIONS
| port isolation Rx-Tx | ≥ 85 dB |
|---|---|
| port isolation Tx-Rx | ≥ 40dB |
| power capacity | 500 W |
| Rx frequency | 10.95 – 12.75 GHz |
| rx gain | ≥45 +20lg(f/12.5)dBi |
| Rx interface | WR75 |
| Rx VSWR | ≤ 1.35 : 1 |
| Tx frequency | 13.75 – 14.50 GHz |
| tx gain | ≥46+20lg(f/14.25)dBi |
| Tx interface | WR75 |
| Tx VSWR | ≤ 1.35 : 1 |
ELECTRICAL SPECIFICATIONS
| power supply | 220 VAC ± 10 50Hz ± 2Hz; ≤350W (not include BUC) |
|---|
ENVIRONMENTAL SPECIFICATIONS
| humidity | 95%（20°C） |
|---|---|
| IP rating | IP65 |
| temperature operational | -40°C to +60°C |
| temperature storage | -55℃ to +70℃ |
| windspeed operational | 13m/s |
| windspeed survival | 20m/s |
PHYSICAL SPECIFICATIONS
| color | White |
|---|---|
| number of cases | 2 |
| packed by | wood crate and aluminium shipping case |
| product height | 2350 mm |
| product length | 2000 mm |
| product weight | 45 kg |
| product width | 2000 mm |
INFORMATION
| HS Code | 8529109090 |
|---|---|
| Country of Origin | Made in China |
| Ex Works | Hong Kong |
| ECCN Number | EAR99 |
| Warranty | 1 year |
| Dangerous Goods | – |
| Unit Package Dimensions | 2000*2000*2350 (mm) |
| Unit Package Weight | 100kg |
| Total Aluminium Content | 0 kg |
| Aluminum Country of Smelt and Cast | – |
| Total Aluminium Value | $ 0 |
