Description
Specifications

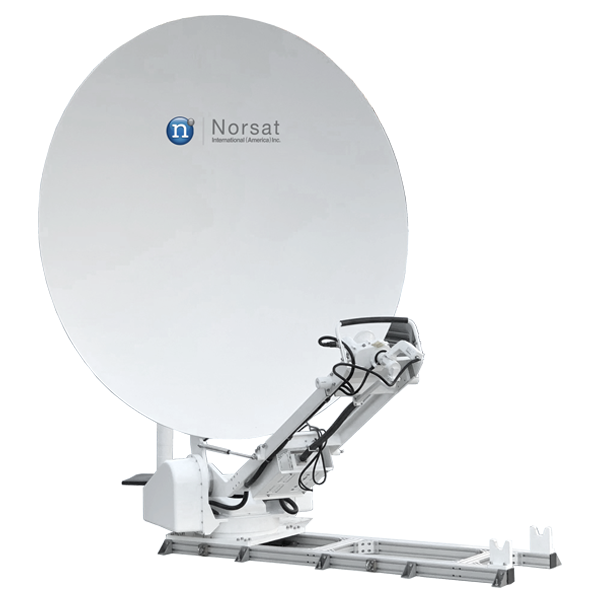

KEY SPECIFICATIONS
| antenna aperture | 1.2m |
|---|---|
| antenna category | Drive Away |
| band | Ku-Band |
| reflector material | Carbon fiber |
| Product Revision | B |
ANTENNA SPECIFICATIONS
| antenna type | Single Offset |
|---|---|
| azimuth angle | ± 200° |
| azimuth range | ± 200° |
| azimuth velocity | 0.1～2.5 °/s |
| cross polarization isolation | ≥35 dB |
| elevation angle | 5° to 90° |
| elevation range | 10° to 90° |
| elevation veolcity | 0.1～2.5 °/s |
| feed configuration | Offset |
| initial auto acquisition time | ≤ 3min |
| movement overrides | Manual (Azimuth/Elevation) |
| polarization | Linear |
| polarization range | ± 90° |
| polarization velocity | 0.1° /s ～6° /s |
| sidelobe | First sidelobe ≤ -14 dB |
| standard BUC options | 2W,3W,4W,6W,8W,10W,16W,20W,40W |
| standard LNB options | 1000H or HS1000, with Type F (75 Ohm) Connector |
RF SPECIFICATIONS
| movement platform | Motorized Elevation over Azimuth |
|---|---|
| port isolation Rx-Tx | Tx ≥ 85 dB |
| port isolation Tx-Rx | Rx ≥ 40dB |
| power capacity | 100 W |
| Rx frequency | 10.70 – 12.75 GHz |
| rx gain | 41.4 dBi + 20log (f/12.5) dBi |
| Rx interface | WR75 |
| Rx VSWR | 1.3 |
| Tx frequency | 13.75 – 14.50 GHz |
| tx gain | 42.7 + 20log (f/14.125) dBi |
| Tx interface | WR75 |
| tx rx isolation port isolation | Rx ≥ 40dB; Tx ≥ 85 dB |
| Tx VSWR | 1.3 |
ELECTRICAL SPECIFICATIONS
| power supply | 100~240VAC, 50Hz, ≤350W (excluding BUC at windless condition) |
|---|
INTERFACE SPECIFICATIONS
| AC input interface | China (Type I Plug) |
|---|---|
| interfacility link cable | 10 m |
| positioning mode | GPS/Beidou |
ENVIRONMENTAL SPECIFICATIONS
| humidity | 95%(20℃) |
|---|---|
| IP rating | IP65 |
| temperature operational | -40°C to +55°C |
| temperature storage | -50°C to +65°C |
| windspeed operational | 20 m/s |
| windspeed survival | 25 m/s |
PHYSICAL SPECIFICATIONS
| color | White |
|---|---|
| default cable (included) | Power supply, RF cable and Communication Cable |
| default cable length | 10m |
| product weight | ≤ 85 kg (excluding power amplifier, LNB, packaging and accessories) |
| RMS | 0.3dB |
| stowed size | 176 x 121 x 38 cm |
INFORMATION
| HS Code | 8517690000 |
|---|---|
| Country of Origin | Made in China |
| Ex Works | Canada |
| ECCN Number | EAR99 |
| Warranty | 1 year |
| Dangerous Goods | – |
| Unit Package Dimensions | 1980 x 1480 x 770 mm |
| Unit Package Weight | 172 kg |
| Total Aluminium Content | 0 kg |
| Aluminum Country of Smelt and Cast | – |
| Total Aluminium Value | $ 0 |
