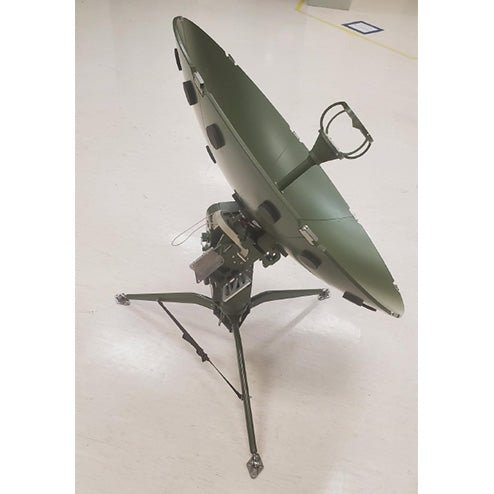

WAYFARER 1.2m Ku-Band Auto Flyaway Antenna – DEMO
¥24,407.52
acquisition and tracking: Automatic
Description
Specifications
KEY SPECIFICATIONS
| acquisition and tracking | Automatic |
|---|---|
| antenna aperture | 1.2m |
| antenna category | Flyaway |
| band | Ku-Band |
| Product Revision | A |
ANTENNA SPECIFICATIONS
| azimuth range | +/- 200° |
|---|---|
| cross polarization isolation | ≥35 dB |
| elevation range | 10° – 90° |
| feed configuration | Centre-feed |
| feed interface | WR75 |
| polarization | Linear |
| sidelobe | First sidelobe -14 dB |
RF SPECIFICATIONS
| phase noise 0.1kHz offset max | -125 dBc/Hz max. |
|---|---|
| port isolation | Tx: ≥ 85 dB; Rx: ≥ 40 dB |
| Rx frequency | 10.70 – 12.75 GHz |
| rx gain | 41.5dBi+ 20log(f/11.85)dBi |
| Tx frequency | 13.75 – 14.50 GHz |
| tx gain | 42.8+ 20log(f/14.125)dBi |
| tx rx isolation port isolation | Tx: ≥ 85 dB; Rx: ≥ 40 dB |
ELECTRICAL SPECIFICATIONS
| power supply | 220V AC 50Hz to 24VDC, rated 200W, 550W max |
|---|
ENVIRONMENTAL SPECIFICATIONS
| humidity | 0 – 95% |
|---|---|
| temperature operational | -30°C to +60°C (Antenna) |
| wind load operational | 36 km/h |
| wind load survival | 61 km/h |
PHYSICAL SPECIFICATIONS
| number of cases | 2 Soft Backpacks:- Backpack 1: Size: 84.5 cm (L) x 62 cm (W) x 49 cm (H); Weight: ≤44Kg- Backpack 2: Size: 84.5 cm (L) x 62 cm (W) x 49 cm (H); Weight: ≤22Kg |
|---|
INFORMATION
| HS Code | 8517690000 |
|---|---|
| Country of Origin | Made in Canada |
| Ex Works | Richmond, BC, Canada |
| ECCN Number | EAR99 |
| Warranty | 1 year |
| Dangerous Goods | – |
| Unit Package Dimensions | 135 mm x 68 mm x 48 mm |
| Unit Package Weight | 0.48 kg |
| Total Aluminium Content | – |
| Aluminum Country of Smelt and Cast | – |
| Total Aluminium Value | – |
