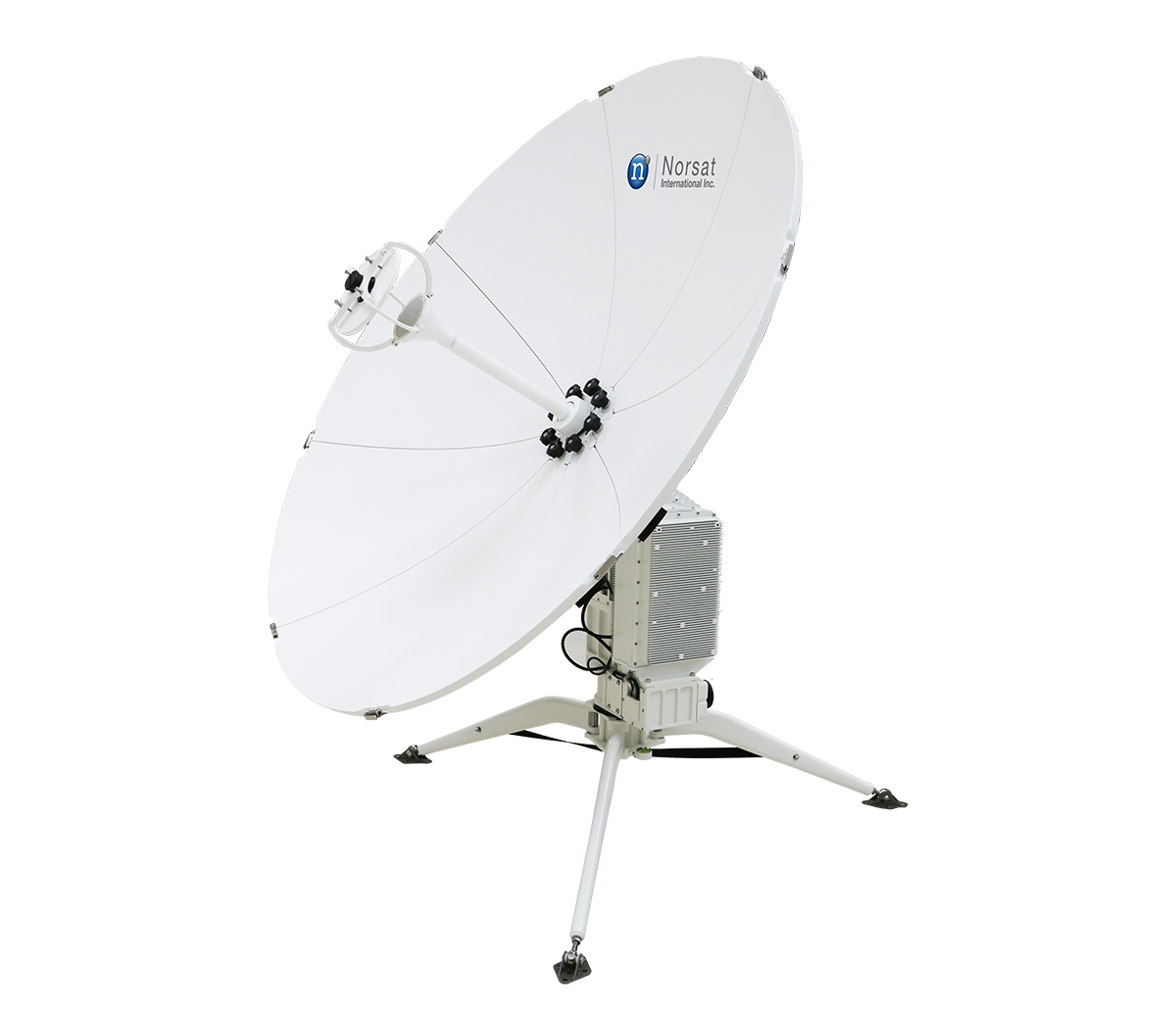

WAYFARER 1.2m Ku-Band Auto Flyaway Antenna – DEMO
¥25,641.00
acquisition and tracking: Automatic
Description
Specifications
KEY SPECIFICATIONS
| acquisition and tracking | Automatic |
|---|---|
| antenna aperture | 1.2m |
| antenna category | Flyaway |
| band | Ku-Band |
| Product Revision | A |
ANTENNA SPECIFICATIONS
| antenna type | Ring Focus |
|---|---|
| azimuth angle | ± 200° |
| azimuth range | ± 200° |
| azimuth velocity | 0.1°/s to 3°/s |
| cross polarization isolation | ≥35 dB |
| elevation angle | 10° to 90° |
| elevation range | 10° to 90° |
| elevation veolcity | 0.1°/s to 3°/s |
| feed configuration | Center |
| movement overrides | Manual (Azimuth/Elevation) |
| polarization | Linear |
| polarization range | ± 90° |
| polarization velocity | 0.1°/s to 1°/s |
| sidelobe | First sidelobe -14 dB |
| standard BUC options | 2W,3W,4W,6W,8W,10W,16W,20W,40W |
| standard LNB options | 1000H or HS1000 Series, with Type F (75 Ohm) Connector |
RF SPECIFICATIONS
| movement platform | Motorized Elevation over Azimuth |
|---|---|
| port isolation Rx-Tx | Tx ≥ 85 dB |
| port isolation Tx-Rx | Rx ≥ 40dB |
| Rx frequency | 10.70 – 12.75 GHz |
| rx gain | 41.5 dBi + 20log (f/11.85) dBi |
| Rx interface | WR75 |
| Tx frequency | 13.75 – 14.50 GHz |
| tx gain | 42.8 + 20log (f/14.125) dBi |
| Tx interface | WR75 |
| tx rx isolation port isolation | Rx ≥ 40dB; Tx ≥ 85 dB |
ELECTRICAL SPECIFICATIONS
| power supply | AC110-230V 50/60Hz, rated 200W, 550W max |
|---|
INTERFACE SPECIFICATIONS
| AC input interface | North America (NEMA 5/15) |
|---|
ENVIRONMENTAL SPECIFICATIONS
| humidity | 0 – 95% |
|---|---|
| IP rating | IP 65 (antenna only) |
| temperature operational | -30°C to +60°C |
| windspeed operational | 36 km/h |
| windspeed survival | 61 km/h |
PHYSICAL SPECIFICATIONS
| color | White |
|---|---|
| default cable length | 10m |
| number of cases | 2 standard |
| reflector material | Carbon fiber |
| ruggedized case 1 height | 49 cm |
| ruggedized case 1 length | 84.5 cm |
| ruggedized case 1 weight | ≤30Kg |
| ruggedized case 1 width | 62 cm |
| ruggedized case 2 height | 49 cm |
| ruggedized case 2 length | 84.5 cm |
| ruggedized case 2 weight | ≤22Kg |
| ruggedized case 2 width | 62 cm |
INFORMATION
| HS Code | 8517690000 |
|---|---|
| Country of Origin | Made in China |
| Ex Works | Canada |
| ECCN Number | EAR99 |
| Warranty | 1 year |
| Dangerous Goods | – |
| Unit Package Dimensions | – |
| Unit Package Weight | – |
| Total Aluminium Content | 0 kg |
| Aluminum Country of Smelt and Cast | – |
| Total Aluminium Value | $ 0 |
