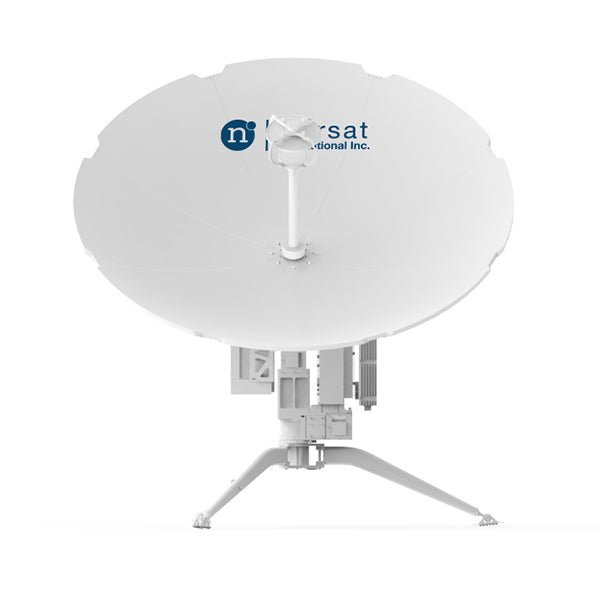

WAYFARER 1.2m Ka-Band Auto Flyaway Antenna – Ring Focus Prime Feed

Description

Specifications

KEY SPECIFICATIONS

acquisition and tracking	Automatic
antenna aperture	1.2m
antenna category	Flyaway
band	Ka-Band
number of onboard LOs	Single-Band
Product Revision	A

ANTENNA SPECIFICATIONS

antenna type	Ring Focus Prime Feed
axis ratio	≤ 1.0 dB
azimuth angle	±200°
azimuth velocity	0.1° /S ～3° /S
elevation angle	10° – 90°
elevation veolcity	0.1° /S ～3° /S
initial auto acquisition time	≤ 3 min
pointing accuracy	≤ 0.5 dB
polarization	Circular
polarization velocity	1° /S
sidelobe	First sidelobe ≤ -14 dB

RF SPECIFICATIONS

port isolation Rx-Tx	85 dB
port isolation Tx-Rx	40 dB
power capacity	100 W
Rx frequency	17.70 – 21.20 GHz
rx gain	≥ 45.0 +20lg(f/20GHz)dBi
Rx interface	WR42
Rx VSWR	≤ 1.5：1
Tx frequency	27.50 – 31.00 GHz
tx gain	≥ 48.5+20lg(f/29.25GHz)dBi
Tx interface	WR28
Tx VSWR	≤ 1.5：1

ELECTRICAL SPECIFICATIONS

power supply	AC 110 – 240V, 47-63 Hz, ≤ 100W (excluding BUC, windless condition)

INTERFACE SPECIFICATIONS

positioning mode	Beacon/DVB carrier

ENVIRONMENTAL SPECIFICATIONS

humidity	0-95%
IP rating	IP 65
temperature operational	-40°C to +55°C
temperature storage	-50°C to +70°C
windspeed operational	≤ 11m/s
windspeed survival	≤ 18m/s

PHYSICAL SPECIFICATIONS

color	White
default cable (included)	Power Supply and RF cable
default cable length	10m
product weight	≤ 26 kg (excluding BUC, LNB, packaging and accessories)
reflector material	Carbon Fiber

INFORMATION

HS Code	8517710000
Country of Origin	Made in China
Ex Works	Hong Kong
ECCN Number	EAR99
Warranty	1 year
Dangerous Goods	–
Unit Package Dimensions	560 mm x 750 mm x 800 mm
Unit Package Weight	70 kg
Total Aluminium Content	0 kg
Aluminum Country of Smelt and Cast	–
Total Aluminium Value	$ 0
