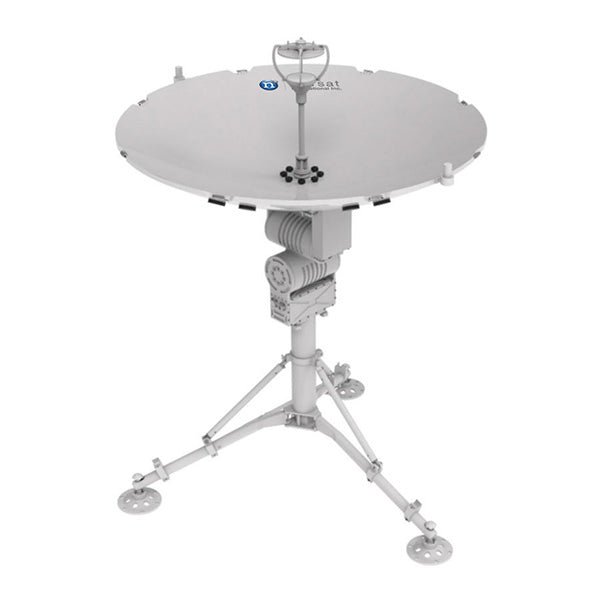

WAYFARER 1.0m Ka-Band X-Y Flyaway Antenna – Ring Focus
¥77,000.00
acquisition and tracking: Automatic
Description
Specifications
KEY SPECIFICATIONS
| acquisition and tracking | Automatic |
|---|---|
| antenna category | Flyaway |
| band | Ka-Band |
| of onboard los | Single-Band |
| Product Revision | A |
ANTENNA SPECIFICATIONS
| antenna aperture | 1.0m |
|---|---|
| antenna type | Ring Focus |
| axis ratio | ≤ 1.2 dB |
| cross polarization isolation | ≥ 23.2 dB (axial direction) |
| motion range X-Axis | ± 90° |
| motion range Y-Axis | ± 90° |
| polarization | Circular |
| sidelobe | First sidelobe ≤ -14 dB |
| velocity X-axis | 0.1°/s – 5°/s |
| velocity Y-axis | 0.1°/s – 5°/s |
RF SPECIFICATIONS
| Rx frequency | 24.25 – 27.5 GHz |
|---|---|
| rx gain | 45.0dBi+20lg(f/24.25)dBi |
| Rx interface | WR34 |
| Rx VSWR | ≤ 1.5 |
| Tx interface | WR34 |
ENVIRONMENTAL SPECIFICATIONS
| humidity | 95% (20°C) |
|---|---|
| IP rating | IP65 |
| temperature operational | -40°C to +55°C |
| temperature storage | -50°C to +70°C |
| windspeed operational | ≤ 11m/s |
| windspeed survival | ≤ 20m/s |
PHYSICAL SPECIFICATIONS
| color | White |
|---|---|
| default cable (included) | Electrical power cables, RF cables |
| default cable length | 10m |
| product weight | ≤ 38 kg (excluding power amplifier, LNB, packaging and accessories) |
INFORMATION
| HS Code | 8529109090 |
|---|---|
| Country of Origin | – |
| Ex Works | Hong Kong |
| ECCN Number | EAR99 |
| Warranty | 1 year |
| Dangerous Goods | – |
| Unit Package Dimensions | – |
| Unit Package Weight | – |
| Total Aluminium Content | – |
| Aluminum Country of Smelt and Cast | – |
| Total Aluminium Value | – |
