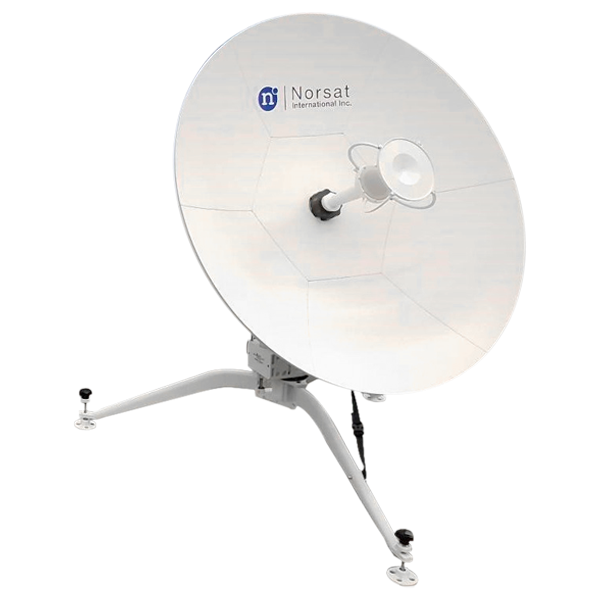

WAYFARER 0.9m Ku-Band Manual Flyaway Antenna – Ring Focus
¥15,168.00
acquisition and tracking: Manual
Description
Specifications
KEY SPECIFICATIONS
| acquisition and tracking | Manual |
|---|---|
| antenna aperture | 0.9m |
| antenna category | Flyaway |
| band | Ku-Band |
| Product Revision | A |
ANTENNA SPECIFICATIONS
| antenna type | Ring Focus |
|---|---|
| azimuth angle | ±180° |
| azimuth range | ±180° |
| cross polarization isolation | ≥35 dB |
| elevation angle | 0° to 90° |
| elevation range | 0° to 90° |
| feed configuration | Center |
| polarization | Linear |
| polarization range | ± 90° |
| sidelobe | First sidelobe ≤ -14 dB |
RF SPECIFICATIONS
| port isolation Rx-Tx | Tx > 85dB |
|---|---|
| port isolation Tx-Rx | Rx > 35dB |
| power capacity | 100 W |
| Rx frequency | 10.70 – 12.75 GHz |
| rx gain | 38.8+20log(f/12.5) dBi |
| Rx interface | WR75 |
| Rx VSWR | 1.5 |
| Tx frequency | 13.75 – 14.50 GHz |
| tx gain | 40.0+20log(f/14.25) dBi |
| Tx interface | WR75 |
| tx rx isolation port isolation | Rx > 35dB; Tx > 85dB |
| Tx VSWR | 1.5 |
ENVIRONMENTAL SPECIFICATIONS
| humidity | 0 – 95% (20°C) |
|---|---|
| IP rating | IP 65 (antenna only) |
| temperature operational | -40°C to +60°C |
| temperature storage | -50°C to +70℃ |
| windspeed operational | 11 m/s |
| windspeed survival | ≤ 18m/s |
PHYSICAL SPECIFICATIONS
| color | White |
|---|---|
| default cable length | 10m |
| number of cases | 1 standard |
| product weight | ≤ 25 kg (excluding BUC, LNB, packaging and accessories |
| reflector material | Carbon fiber |
| ruggedized case 1 height | 41.6 cm |
| ruggedized case 1 length | 85.6 cm |
| ruggedized case 1 weight | ≤25Kg |
| ruggedized case 1 width | 72.5 cm |
INFORMATION
| HS Code | 8517690000 |
|---|---|
| Country of Origin | Made in China |
| Ex Works | Hong Kong |
| ECCN Number | EAR99 |
| Warranty | 1 year |
| Dangerous Goods | – |
| Unit Package Dimensions | – |
| Unit Package Weight | – |
| Total Aluminium Content | 0 kg |
| Aluminum Country of Smelt and Cast | – |
| Total Aluminium Value | $0 |
