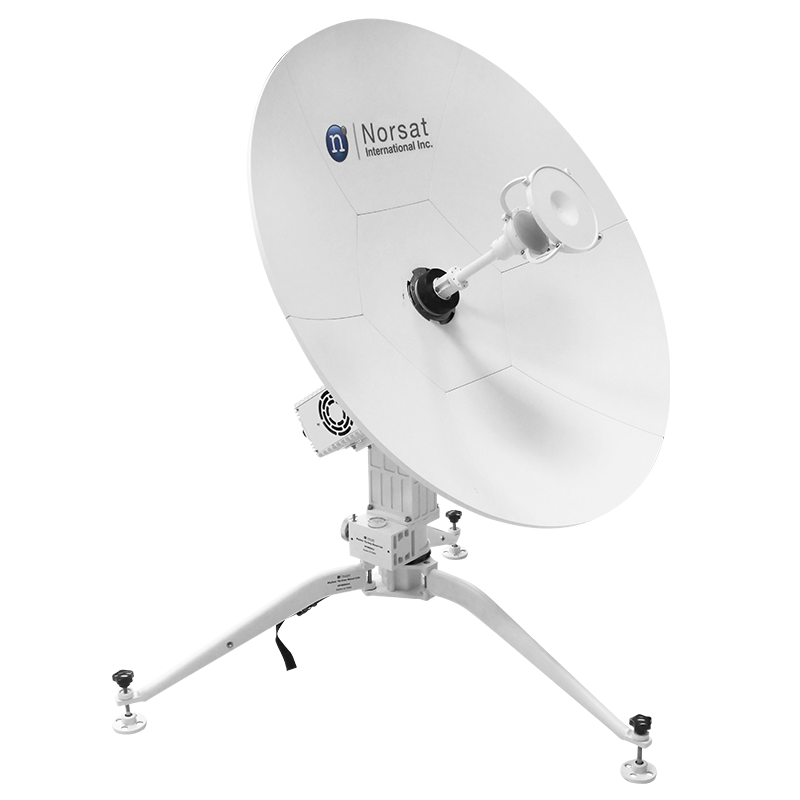

WAYFARER 0.8m Ka-Band Manual Flyaway Antenna – Ring Focus
¥24,708.00
acquisition and tracking: Manual
Description
Specifications
KEY SPECIFICATIONS
| acquisition and tracking | Manual |
|---|---|
| antenna aperture | 0.8m |
| antenna category | Flyaway |
| band | Ka-Band |
| Product Revision | C |
ANTENNA SPECIFICATIONS
| antenna type | Ring Focus |
|---|---|
| axis ratio | ≤ 1.5dB |
| azimuth angle | 360° |
| azimuth range | ±180° |
| elevation angle | 0° to 90° |
| elevation range | 0° to 90° |
| feed configuration | Center |
| polarization | Circular |
| polarization range | ± 90° |
| sidelobe | First sidelobe ≤ -14 dB |
RF SPECIFICATIONS
| port isolation Rx-Tx | Tx > 85dB |
|---|---|
| port isolation Tx-Rx | Rx > 40dB |
| power capacity | 50 W |
| Rx frequency | 19.20 – 20.20 GHz |
| rx gain | 41.4 + 20lg(f/20.0) dBi |
| Rx interface | WR42 |
| Rx VSWR | 1.5 |
| Tx frequency | 29.0 – 30.0 GHz |
| tx gain | 45.0 + 20lg(f/30.0) dBi |
| Tx interface | WR28 |
| tx rx isolation port isolation | Rx > 35dB; Tx > 85dB |
| Tx VSWR | 1.5 |
ENVIRONMENTAL SPECIFICATIONS
| humidity | 0 – 95% |
|---|---|
| IP rating | IP 65 |
| temperature operational | -40°C to +60°C |
| temperature storage | -50°C to +70℃ |
| windspeed operational | 11 m/s |
| windspeed survival | ≤ 18m/s |
PHYSICAL SPECIFICATIONS
| color | White |
|---|---|
| default cable length | 10m |
| number of cases | 1 standard |
| product weight | ≤ 11 kg (without BUC, LNB, packaging and accessories etc.) |
| reflector material | Carbon fiber |
| ruggedized case 1 height | 41.6 cm |
| ruggedized case 1 length | 85.6 cm |
| ruggedized case 1 weight | ≤22Kg |
| ruggedized case 1 width | 72.5 cm |
INFORMATION
| HS Code | 8517690000 |
|---|---|
| Country of Origin | Made in China |
| Ex Works | Canada |
| ECCN Number | EAR99 |
| Warranty | 1 year |
| Dangerous Goods | – |
| Unit Package Dimensions | – |
| Unit Package Weight | – |
| Total Aluminium Content | 0 kg |
| Aluminum Country of Smelt and Cast | – |
| Total Aluminium Value | $0 |
