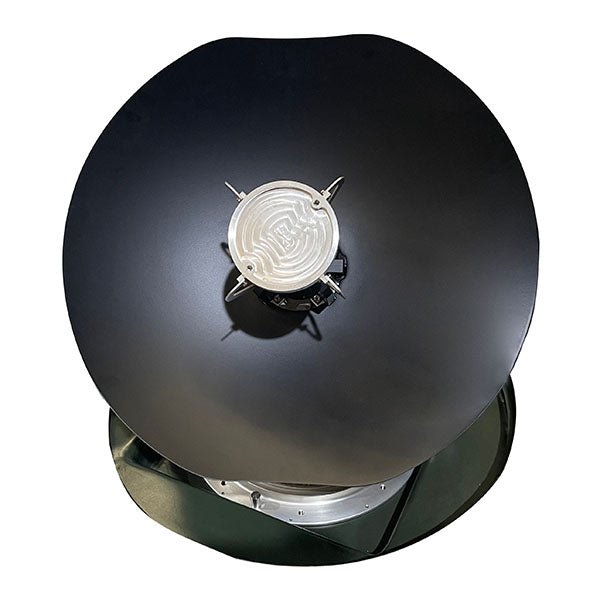

WAYFARER 0.45m Ku/Ka Dual Frequency Parabolic Antenna
¥159,500.00
antenna category: On the Move
Description
Specifications
KEY SPECIFICATIONS
| antenna category | On the Move |
|---|---|
| band | Ku-Band/Ka-Band |
| of onboard los | Dual-Band |
| Product Revision | A |
ANTENNA SPECIFICATIONS
| antenna aperture | 0.45m |
|---|---|
| antenna type | King focus loop local |
| auto acquisition time | ≤ 2min |
| azimuth acceleration | ≥ 200°/s² |
| azimuth velocity | ≤ 60°/s |
| blockage recovery time | ≤ 5s (Blockage 20 min) |
| cross polarization isolation | ≥ 30 dB |
| elevation acceleration | ≥ 200°/s² |
| elevation veolcity | ≤ 60°/s |
| motion range AZ | 360° infinity |
| motion range EL | 10° – 90° |
| motion range POL | ± 95° (Ku-Band) |
| polarization | Ku-Band: Linear/Ka-Band: Circular |
| polarization velocity | ≤40°/s |
| sidelobe | azimuth: ≤ -13dB, elevation: ≤ -12dB |
RF SPECIFICATIONS
| port isolation Rx-Tx | 85 dB |
|---|---|
| port isolation Tx-Rx | 85 dB |
| power capacity | 100 W |
| Rx frequency | Ku-Band: 12.25 – 12.75 GHz; Ka-Band: 19.60 – 21.20 GHz |
| rx gain | Ku-Band: 32.5+20lg(f/12.50)dBi; Ka-Band: 36.4+20lg(f/20.40)dBi |
| Rx interface | Ku-Band: WR75; Ka-Band: WR42 |
| Rx VSWR | ≤ 1.5 : 1 |
| Tx frequency | Ku-Band: 14.00 – 14.50 GHz; Ka-Band: 29.40 – 31.00 GHz |
| tx gain | Ku-Band: 32.8+20lg(f/14.25)dBi; Ka-Band: 38.3+20lg(f/30.20)dBi |
| Tx interface | Ku-Band: WR75; Ka-Band: WR28 |
| Tx VSWR | ≤ 1.5 : 1 |
ELECTRICAL SPECIFICATIONS
| power consumption | Static 100w, dynamic 200w (without power amplifier) |
|---|---|
| power supply | 220 VAC |
INTERFACE SPECIFICATIONS
| positioning mode | GPS+Beidou |
|---|
ENVIRONMENTAL SPECIFICATIONS
| humidity | 95% (20°C) |
|---|---|
| IP rating | IP65 |
| temperature operational | -40°C to +60°C |
| temperature storage | -50°C to +70°C |
| windspeed operational | ≤ 21m/s |
| windspeed survival | ≤ 35m/s |
PHYSICAL SPECIFICATIONS
| color | White |
|---|---|
| default cable (included) | Communication cables, Power supply cables, RF cables, Electrical power cables |
| default cable length | 10m |
| product weight | ≤ 40 kg (excluding power amplifier, LNB, packaging and accessories) |
| RMS | ≤ 0.5 dB (R.M.S) |
INFORMATION
| HS Code | 8529109090 |
|---|---|
| Country of Origin | – |
| Ex Works | Hong Kong |
| ECCN Number | EAR99 |
| Warranty | 1 year |
| Dangerous Goods | – |
| Unit Package Dimensions | – |
| Unit Package Weight | – |
| Total Aluminium Content | – |
| Aluminum Country of Smelt and Cast | – |
| Total Aluminium Value | – |
