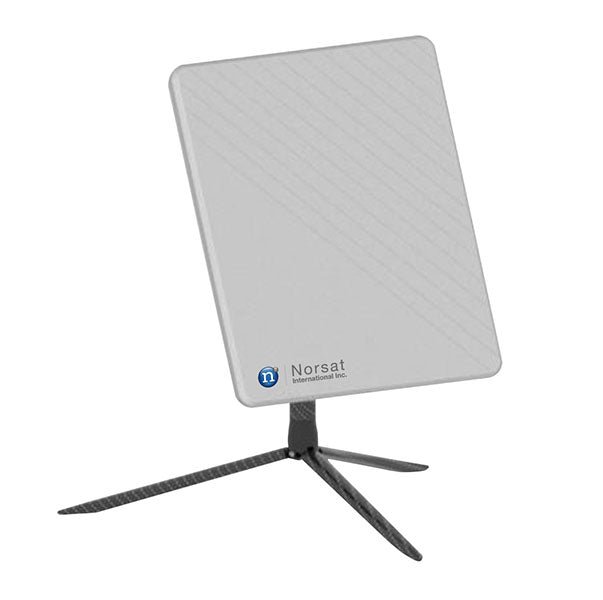

Description
Specifications
KEY SPECIFICATIONS
| acquisition and tracking | Automatic |
|---|---|
| antenna category | Flyaway |
| band | Ku-Band |
| of onboard los | Single-Band |
| Product Revision | A |
ANTENNA SPECIFICATIONS
| antenna aperture | 0.35m |
|---|---|
| antenna type | Flat Panel Array |
| auto acquisition time | ≤ 3min |
| cross polarization isolation | ≥ 30 dB (axial direction) |
| polarization | Linear |
| sidelobe | First sidelobe ≤ -14 dB |
RF SPECIFICATIONS
| port isolation Rx-Tx | 85 dB (Field input port) |
|---|---|
| port isolation Tx-Rx | 40 dB (Field output port) |
| Rx frequency | 10.75 – 12.75 GHz |
| rx gain | 31.2+20lg(f/12.50)dBi |
| Rx VSWR | ≤ 1.8 |
| Tx frequency | 13.75 – 14.50 GHz |
| tx gain | 33.4+20lg(f/14.25)dBi |
| Tx VSWR | ≤ 1.8 |
ELECTRICAL SPECIFICATIONS
| power consumption | ≤ 150W |
|---|---|
| power supply | DC 24V (Type-C), 50 – 60Hz |
INTERFACE SPECIFICATIONS
| positioning mode | GPS+Beidou |
|---|
ENVIRONMENTAL SPECIFICATIONS
| humidity | 95%±3% (20°C to 60°C) |
|---|---|
| IP rating | IP65 |
| temperature operational | -40°C to +60°C |
| temperature storage | -50°C to +70°C |
| windspeed operational | ≤11m/s (Compression weight) |
| windspeed survival | ≤18m/s (Compression weight) |
PHYSICAL SPECIFICATIONS
| default cable (included) | Electrical power cables, RF cables |
|---|---|
| default cable length | 10m |
| product weight | ≤6 kg (excluding packaging and accessories, etc) |
| RMS | 0.3dB (R.M.S) |
INFORMATION
| HS Code | 8529109090 |
|---|---|
| Country of Origin | – |
| Ex Works | Hong Kong |
| ECCN Number | EAR99 |
| Warranty | 1 year |
| Dangerous Goods | – |
| Unit Package Dimensions | – |
| Unit Package Weight | – |
| Total Aluminium Content | – |
| Aluminum Country of Smelt and Cast | – |
| Total Aluminium Value | – |
