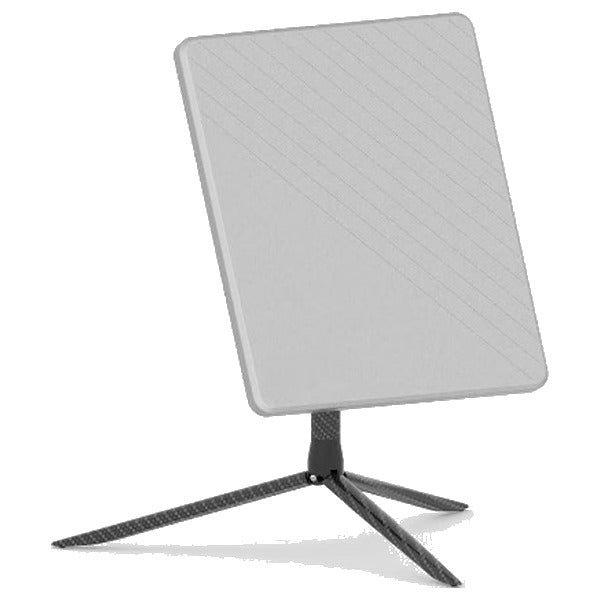

WAYFARER 0.35m Ku-Band Auto Flyaway Antenna – Flat Panel
¥44,000.00
acquisition and tracking: Automatic
Description
Specifications
KEY SPECIFICATIONS
| acquisition and tracking | Automatic |
|---|---|
| antenna aperture | 0.35 m |
| antenna category | Flyaway |
| band | Ku-Band |
| number of onboard LOs | Single-Band |
| Product Revision | A |
ANTENNA SPECIFICATIONS
| antenna type | Flat Panel Array (Micro-strip Gap Array) |
|---|---|
| cross polarization isolation | ≥30 dB |
| polarization | Linear |
| sidelobe | First sidelobe ≤ -14 dB |
RF SPECIFICATIONS
| port isolation Rx-Tx | ≥ 85 dB |
|---|---|
| port isolation Tx-Rx | ≥ 40 dB |
| power capacity | ≤ 150 W |
| Rx frequency | 10.75 – 12.75 GHz |
| rx gain | ≥ 31.2dBi+20lg(f/12.50GHz)dBi |
| Rx VSWR | ≤ 1.8 |
| Tx frequency | 13.75 – 14.50 GHz |
| tx gain | ≥ 33.4dBi+20lg(f/14.25GHz)dBi |
| Tx VSWR | ≤ 1.8 |
INTERFACE SPECIFICATIONS
| positioning mode | Beacon / DVB carrier |
|---|
ENVIRONMENTAL SPECIFICATIONS
| humidity | 95% ±3% (20°C – 60°C) |
|---|---|
| IP rating | IP65 |
| temperature operational | -40°C to +60°C |
| temperature storage | -50°C to +70°C |
| windspeed operational | ≤ 11 m/s |
| windspeed survival | ≤ 18 m/s |
PHYSICAL SPECIFICATIONS
| product dimensions (LxWxH) | 415 x 328 x 80 mm |
|---|---|
| product weight | ≤ 6 kg (excluding packaging and accessories) |
| RMS | 0.3 dB |
INFORMATION
| HS Code | 8529109090 |
|---|---|
| Country of Origin | Made in China |
| Ex Works | Hong Kong |
| ECCN Number | N/A – No US Content |
| Warranty | 1 year |
| Dangerous Goods | – |
| Unit Package Dimensions | 640 x 570 x 420 mm |
| Unit Package Weight | 19 kg |
| Total Aluminium Content | – |
| Aluminum Country of Smelt and Cast | – |
| Total Aluminium Value | – |
