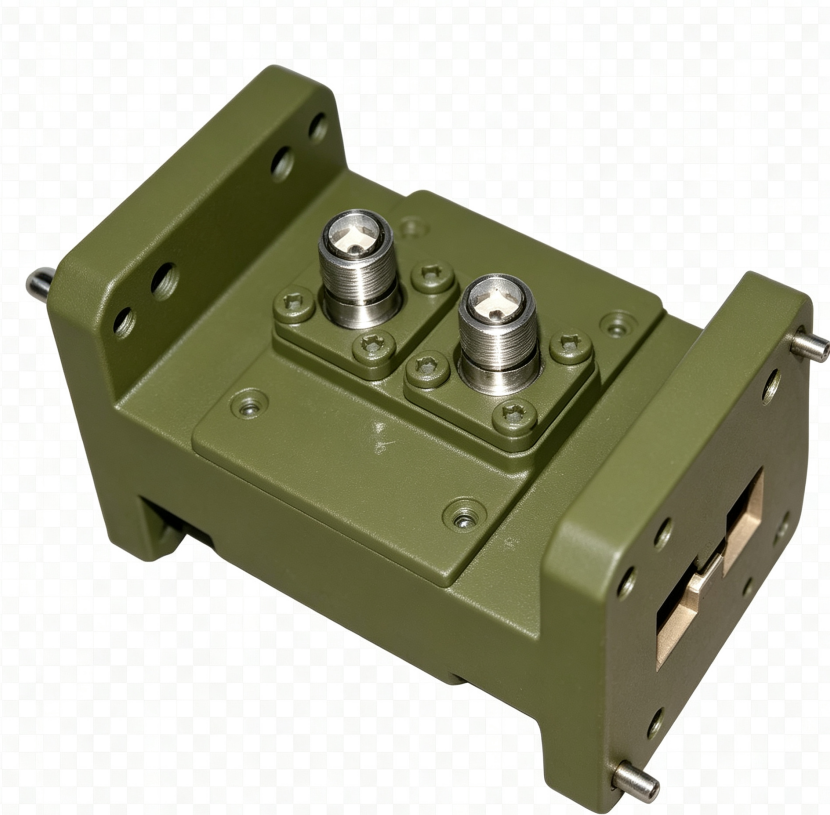

Waveguide Coupler 750MHz–40GHz,Huashi,Gardiner

Description

Product Overview

Waveguide Coupler 750MHz–40GHz  Custom-tailored · Ultra-high Cost Performance) is a high-performance microwave component product from HS Microwave. This manual compiles technical specifications for all models in the series, for engineering design, system integration, and procurement reference. All data is from original factory test reports, unmodified.

Key Features

• 20% relative bandwidth, wideband coverage

• Insertion loss as low as 0.3 dB

• Coupling range 3–60 dB, fully customizable

• Directivity 15–30 dB, excellent isolation

• Full waveguide series WR975–WR28

• Suitable for high-power applications

• Ultra-high cost performance, volume advantage

• Custom design from customer drawings/samples

Typical Applications

1. SatCom earth stations

2. Radar power distribution

3. Microwave relay links

4. EW/ECM systems

5. Test & measurement labs

6. 5G/6G mmWave research

Models & Specifications

Model	Freq(GHz)	BW	IL(dB)	VSWR	Coup.(dB)	Dir.(dB)	Waveguide	BJ	Flange
HS-CP9	0.75-1.15	20%	0.3	1.15	3-60	15-30	WR975	BJ9	FDP/FDM
HS-CP12	0.96-1.46	20%	0.3	1.15	3-60	15-30	WR770	BJ12	FDP/FDM
HS-CP14	1.13-1.73	20%	0.3	1.1	3-60	15-30	WR650	BJ14	FDP/FDM
HS-CP18	1.45-2.20	20%	0.3	1.1	3-60	15-30	WR510	BJ18	FDP/FDM
HS-CP22	1.72-2.61	20%	0.3	1.1	3-60	15-30	WR430	BJ22	FDP/FDM
HS-CP26	2.17-3.30	20%	0.3	1.1	3-60	15-30	WR340	BJ26	FDP/FDM
HS-CP32	2.60-3.95	20%	0.3	1.1	3-60	15-30	WR284	BJ32	FDP/FDM
HS-CP40	3.22-4.90	20%	0.3	1.1	3-60	15-30	WR229	BJ40	FDP/FDM
HS-CP48	3.94-5.99	20%	0.3	1.1	3-60	15-30	WR187	BJ48	FDP/FDM
HS-CP58	4.64-7.05	20%	0.3	1.1	3-60	15-30	WR159	BJ58	FDP/FDM
HS-CP70	5.38-8.17	20%	0.3	1.1	3-60	15-30	WR137	BJ70	FDP/FDM
HS-CP84	6.57-9.99	20%	0.3	1.1	3-60	15-30	WR112	BJ84	FBP/FBM/FBE
HS-CP100	8.20-12.40	20%	0.3	1.1	3-60	15-30	WR90	BJ100	FBP/FBM/FBE
HS-CP120	9.84-15.0	20%	0.3	1.1	3-60	15-30	WR75	BJ120	FBP/FBM/FBE
HS-CP140	11.9-18.0	20%	0.3	1.1	3-60	15-30	WR62	BJ140	FBP/FBM/FBE
HS-CP180	14.5-22.0	20%	0.3	1.1	3-60	15-30	WR51	BJ180	FBP/FBM/FBE
HS-CP220	17.6-26.7	20%	0.3	1.1	3-60	15-30	WR42	BJ220	FBP/FBM/FBE
HS-CP260	21.7-33.0	20%	0.3	1.15	3-60	15-30	WR34	BJ260	FBP/FBM/FBE
HS-CP320	26.5-40.0	20%	0.3	1.15	3-60	15-30	WR28	BJ320	FBP/FBM/FBE



General Specifications

Parameter	Specification
Impedance	50 Ω
Operating Temp.	-40°C ~ +85°C
Storage Temp.	-55°C ~ +105°C
Rel. Humidity	≤95% (non-condensing)
Material	Aluminum alloy
Finish	Conductive oxidation
Mounting	Flange mount
Power Handling	Custom per model
Coupling Accuracy	±1.0 dB
VSWR	≤1.15 (typ.)



Model Naming Convention

HS – CP – XX

│     │    └─ XX = Waveguide number (BJ9–BJ320)

│     └────── CP = Coupler

└──────────── HS = Brand prefix
