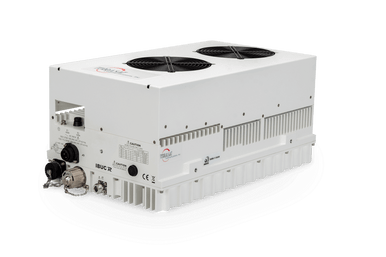

Terrasat IBUC R IBR079084-0NA200WW X Band 200W
Details Overview The IBUC R has all of the advanced IBUC features and the upgraded RJ45 M&C connector. IBUC offers significant benefits: Low terminal cost Simple design and installation Superior RF performance Simplified 1+1 configuration New interfaces connect you to extensive M&C facilities for network management or local access. This powerful new M&C enables: Trouble-free commissioning with eas | 询價 / Contact for Quote (price on request)
Description
Overview
The IBUC R has all of the advanced IBUC features and the upgraded RJ45 M&C connector.
IBUC offers significant benefits:
- Low terminal cost
- Simple design and installation
- Superior RF performance
- Simplified 1+1 configuration
New interfaces connect you to extensive M&C facilities for network management or local access. This powerful new M&C enables:
- Trouble-free commissioning with easy, point-and-click installation/configuration
- Continuous verification of performance with time-stamped alarm history
- Simplified monitoring of terminal status
Details
- TCP/IP HTTP with embedded Web pages
- SNMP
- TELNET through TCP/IP
- FSK through TX IFL cable
- RS232/485 serial port
- Hand-held terminal
Key Specifications
| Brand | Terrasat |
|---|---|
| Series | IBUC R |
| Band | X-Band |
| Output Power (P1dB) | 200W |
| Frequency Range (RF) | 7900 to 8400 MHz |
| Frequency Range (IF) | 950 to 1450 MHz |
| MPN / Product Code | IBR079084-0NA200WW |
Technical Documents / 技术文档
Price on Request / 询價联系：Terrasat 产品在源站为询价型（无公开价）。请通过 contact@orbitalconnect.com 或 +1 888-315-9545 联系我们获取最新报价。
Additional information
| Brand | Terrasat |
|---|---|
| Series | IBUC R |
| Band | |
| Output Power | |
| Frequency Range (RF) | 7900 to 8400 MHz |
| Frequency Range (IF) | 950 to 1450 MHz |
| MPN | IBR079084-0NA200WW |
| Datasheet | IBUC R X Band Data Sheet: https://fc52f093-9bc9-4702-93c4-e30cab223424.usrfiles.com/ugd/fc52f0_ee8d76c722504927909b13958f807bd9.pdf |
