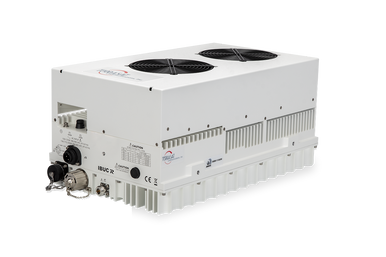

Terrasat IBUC R IBR058064-1N5080WW C-Band 80W
IBUC R C-Band Intelligent Block Upconverter The Terrasat C-Band IBUC R Series has all of the advanced IBUC features and the upgraded RJ45 M&C connector. This block upconverter offers significant benefits including low terminal cost, simple design and installation, superior RF performance and a relia
Description
IBUC R C-Band Intelligent Block Upconverter
The Terrasat C-Band IBUC R Series has all of the advanced IBUC features and the upgraded RJ45 M&C connector. This block upconverter offers significant benefits including low terminal cost, simple design and installation, superior RF performance and a reliable 1+1 configuration. Available in a wide range of RF power outputs including 80W, 100W, 125W, 150W, 175 and 200 watts.
The C-band IBUC R Series also provides new interfaces for connecting you to extensive M&C facilities for network management or local access. This powerful M&C enables trouble‐free commissioning with easy, point‐and‐click installation/configuration, continuous verification of performance with time‐stamped alarm history and simplified monitoring of terminal status
IBUC-R comes with a complete set of diagnostic tools including:
10 MHz input detector Input voltage and current monitoring Transmit L‐band input level detector Transmit RF output level detector User configurable thresholds and alarms
Unique to the IBUC are internal AGC and ALC functions that satisfy demanding applications with stringent specifications.
Frequency Range RF (MHz) IF (MHz)
Sense Inverting Non-Inverting
Band 1 std C 5850 to 6425 950 to 1525 950 to 1525
Band 2 Palapa 6425 to 6725 975 to 1275 1125 to 1425
Band 3 INSAT 6725 to 7025 1150 to 1450 965 to 1265
Band 4 EXT C 5850 to 6650 950 to 1750 950 to 1750
Band 5 Full C 5850 to 6725 975 to 1850 950 to 1825
| Download Name | |
Terrasat IBUC R C Band Data Sheet |
|
