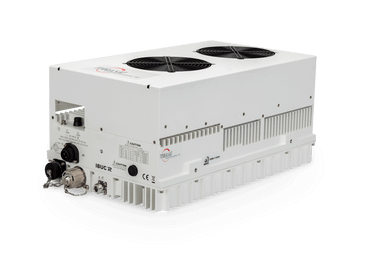

Terrasat IBUC G IBG079084-0NA200WSFWW-0000 X Band 200W

Overview

The IBUC Advantage
All IBUCs are equipped with cutting-edge intelligent technology:
• Highest quality & exacting performance guaranteed through individual unit testing over temperature
• Superior linearity for maximum useable output power
• Amplifier overdrive protection
• User-selectable AGC/ALC for optimal performance & compatibility with modem adaptive coding
• New high capacity microprocessor & extended M&C functions
• Weatherized RJ45 Ethernet interface for simplified connection

ULTIMATE MANAGEMENT & CONTROL
» Local Web Interface & NMS-Friendly SNMP
» 70+ User Configurable Thresholds & Alarms
» Upgraded Event Log with 1,000 Sensor Readings
» Performance Trend Analysis Tools & Statistical logs
» Embedded Web Pages for Universal Web Browser Access

The revolutionary IBUC G has advanced features and a Gallium Nitride (GaN) amplifier for increased efficiency.

IBUC G offers significant benefits:

• Low terminal cost
• Simple design and installation
• Superior RF performance
• Simplified 1+1 configuration

New interfaces connect you to extensive M&C facilities for network management or local access. This powerful new M&C enables:

• Trouble-free commissioning with easy, point-and-click installation/configuration
• Continuous verification of performance with time-stamped alarm history
• Simplified monitoring of terminal status

Details

• TCP/IP HTTP with embedded Web pages via RJ45 user interface connector
• SNMP
• TELNET through TCP/IP
• FSK through TX IFL cable
• RS232/485 serial port
• Hand-held terminal

Frequency Range RF (MHz) IF (MHz)
7900 to 8400 MHz 950 to 1450 MHz
