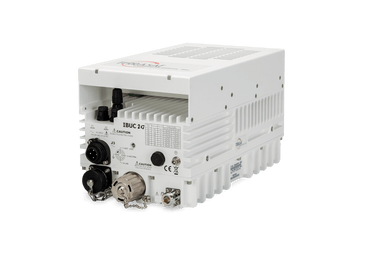

Terrasat IBUC 2G IBR058067-1NA101WW-1000 C-Band 100W
IBUC 2G C-Band Intelligent Block Upconverter The IBUC Advantage All IBUCs are equipped with cutting-edge intelligent technology: • Highest quality & exacting performance guaranteed through individual unit testing over temperature • Superior linearity for maximum useable output power • Amplifier over
Description
IBUC 2G C-Band Intelligent Block Upconverter
The IBUC Advantage
All IBUCs are equipped with cutting-edge intelligent technology:
• Highest quality & exacting performance guaranteed through individual unit testing over temperature
• Superior linearity for maximum useable output power
• Amplifier overdrive protection
• User-selectable AGC/ALC for optimal performance & compatibility with modem adaptive coding
• New high capacity microprocessor & extended M&C functions
• Weatherized RJ45 Ethernet interface for simplified connection
ULTIMATE MANAGEMENT & CONTROL
» Local Web Interface & NMS-Friendly SNMP
» 70+ User Configurable Thresholds & Alarms
» Upgraded Event Log with 1,000 Sensor Readings
» Performance Trend Analysis Tools & Statistical logs
» Embedded Web Pages for Universal Web Browser Access
The Terrasat IBUC 2G C-Band GaN is a revolutionary Block Upconverter with advanced features such as a Gallium Nitride amplifier for increased efficiency. Integrated fully automatic gain control and ALC comes standard on all BUCs with all second generation GaN BUCs
The C-Band IBUC 2G Series also provides new interfaces for connecting you to extensive M&C facilities for network management or local access. This powerful M&C enables trouble‐free commissioning with easy, point‐and‐click installation/configuration, continuous verification of performance with time‐stamped alarm history and simplified monitoring of terminal status
IBUC-2G comes with a complete set of diagnostic tools including:
10 MHz input detector Input voltage and current monitoring Transmit L‐band input level detector Transmit RF output level detector User configurable thresholds and alarms
Unique to the IBUC-2G are internal AGC and ALC functions that satisfy demanding applications with stringent specifications.
Frequency Range RF (MHz) IF (MHz)
Sense Inverting Non-Inverting
Band 1 Std C 5850 to 6425 950 to 1525 950 to 1525
Band 2 Palapa 6425 to 6725 975 to 1275 1125 to 1425
Band 3 INSAT 6725 to 7025 1150 to 1450 965 to 1265
Band 4 Ext C 5850 to 6650 950 to 1750 950 to 1750
Band 5 Full C 5850 to 6725 975 to 1850 950 to 1825
| Download Name | |
Terrasat IBUC 2G C Band Data Sheet |
|
