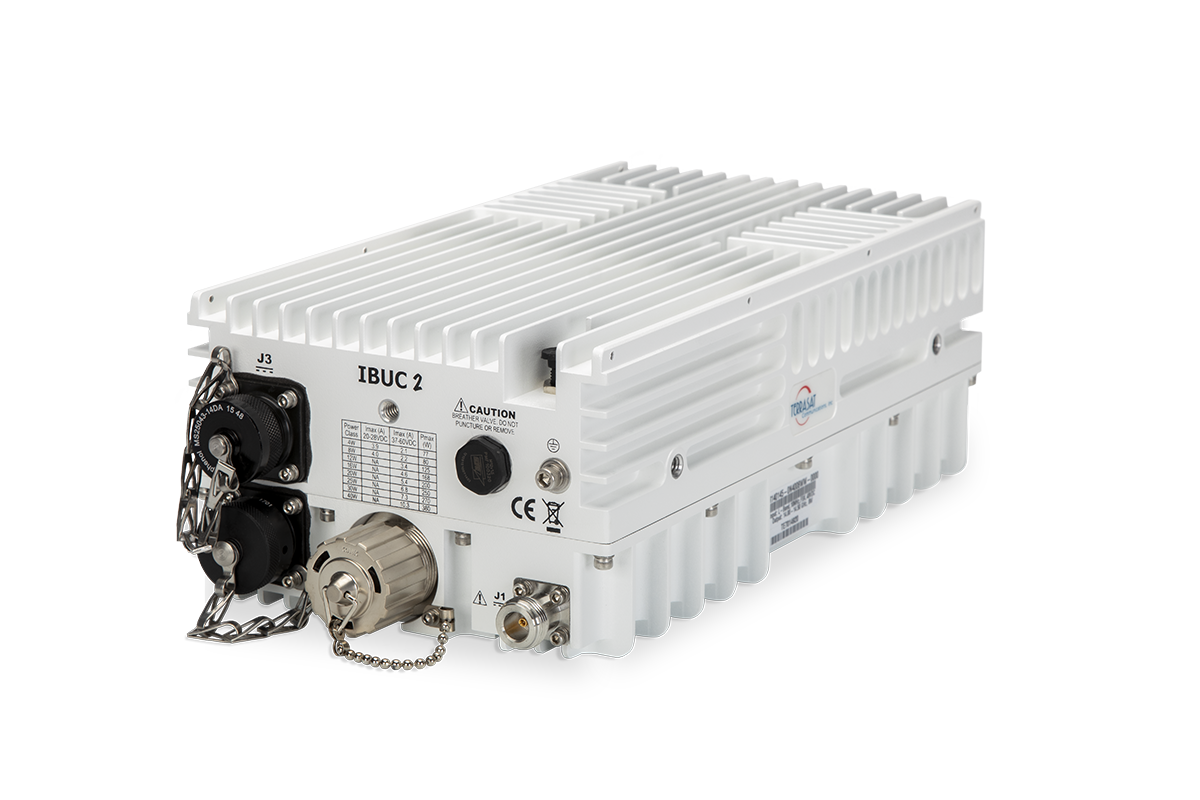

Terrasat IBUC 2 IBR058064-1N4015WW C Band 15W
C-Band IBUC IBUC 2 The IBUC Advantage All IBUCs are equipped with cutting-edge intelligent technology: • Highest quality & exacting performance guaranteed through individual unit testing over temperature • Superior linearity for maximum useable output power • Amplifier overdrive protection • User-se
Description
C-Band IBUC
IBUC 2
The IBUC Advantage
All IBUCs are equipped with cutting-edge intelligent technology:
• Highest quality & exacting performance guaranteed through individual unit testing over temperature
• Superior linearity for maximum useable output power
• Amplifier overdrive protection
• User-selectable AGC/ALC for optimal performance & compatibility with modem adaptive coding
• New high capacity microprocessor & extended M&C functions
• Weatherized RJ45 Ethernet interface for simplified connection
ULTIMATE MANAGEMENT & CONTROL
» Local Web Interface & NMS-Friendly SNMP
» 70+ User Configurable Thresholds & Alarms
» Upgraded Event Log with 1,000 Sensor Readings
» Performance Trend Analysis Tools & Statistical logs
» Embedded Web Pages for Universal Web Browser Access
Overview
The IBUC 2 is a compact integrated BUC/GaAs SSPA designed for higher performance & reliability. Block Upconverters based on linear GaAs amplifier technology require minimal output power backoff. 24-48-hour environmental chamber testing guarantees P1 dB output power over frequency and temperature range.
Multiple sensors & a new, high-capacity microprocessor provide tools to optimize terminal performance. The IBUC 2 is a popular choice for medium-high power Satcom terminals in telecom, defense, air traffic control, government & other demanding network applications.
All Terrasat IBUCs come with a 3 year warranty.
Power Level
5W to 80W
Amplifier Tech
GaAs
Options
- 1+1 Transmit Redundancy
- High Stability Internal 10 MHz Reference with Auto-Detection
- Several Factory Select Bands
- AC or DC Input Models
- Mounting Brackets
- Optional Type N or F-Type Input Connectors
- Waveguide or Type N Output
- Handheld Terminal
Frequency Range RF (MHz) IF (MHz)
Sense Inverting Non-Inverting
Band 1 Std C 5850 to 6425 950 to 1525 950 to 1525
Band 2 Palapa 6425 to 6725 975 to 1275 1125 to 1425
Band 3 INSAT 6725 to 7025 1150 to 1450 965 to 1265
Band 4 Ext C 5850 to 6650 950 to 1750 950 to 1750
Band 5 Full C 5850 to 6725 975 to 1850 950 to 1825
| Download Name | |
Terrasat IBUC 2 C Band Data Sheet |
|
