Technical Features of Hwadar SMC Antenna 1.8m Series

Description

Technical Features of Hwadar SMC Antenna 1.8m Series

技术参数 / Specifications
Center frequency gain	ku Band: 35.5dB
3dB wave width	ku Band: 3.9 °
First sidelobe	-20dB
Polarization isolation	>30dB
Voltage standing wave ratio	<1.3:1
Noise temperature	47 ° K
Feed source connector	C-Band CPR229
Reflective surface material	Single piece glass fiber reinforced unsaturated polyester sheet molding compound (SMC)
Antenna type	center feeding
Offset angle	22.3 °
Transportation specification	90KG
Normal operation	-40~60 ℃
Security	45mps
Preservation	-45~70 ℃

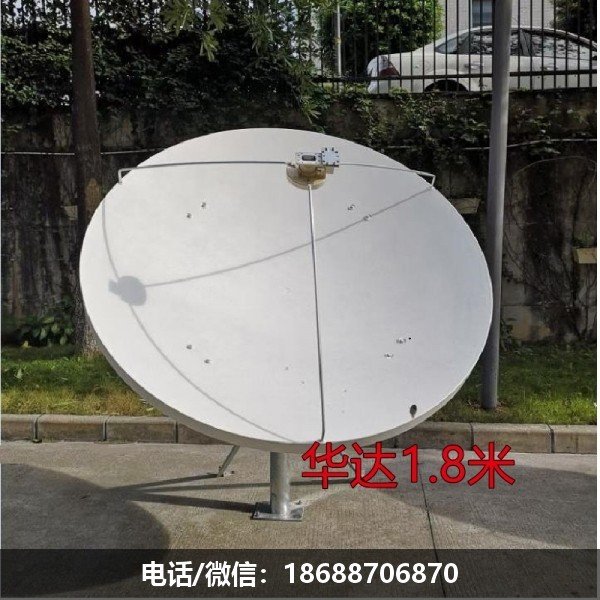

Huada 1.8-meter fiberglass antenna offset feed KU band antenna hot-dip galvanized integral antenna pot picture specifications

Electrical characteristics of Huada 1.8-meter fiberglass antenna
The working frequency (C-Band) is 3.7~4.2 GHz.

Center frequency gain: ku Band: 35.5dB.

3dB wave width: ku Band: 3.9 °.

First sidelobe: -20dB.

Polarization isolation:>30dB.

Voltage standing wave ratio:<1.3:1.
Noise temperature: 47 ° K.

Feed source connector: C-Band CPR229.

Mechanical characteristics of Huada 1.8-meter fiberglass antenna:
Reflective surface material: Single piece glass fiber reinforced unsaturated polyester sheet molding compound (SMC).

Antenna type: center feeding.

Offset angle: 22.3 °.

Installation form of feed source: single arm support/three pole support.

Range of elevation angle adjustment: 0~90 degrees can be continuously fine tuned.

The azimuth adjustment range is continuously adjustable from 0 to 360 degrees.

Transportation specification: 90KG.

Huada 1.8-meter fiberglass antenna environmental adaptability:
Wind load:

Normal operation: 22mps.

Security: 45mps.

Adapt to temperature.

Normal operation: -40~60 ℃.

Preservation: -45~70 ℃.

Huada 1.8-meter fiberglass antenna is suitable for humid, high salinity, and polluted climate environments
