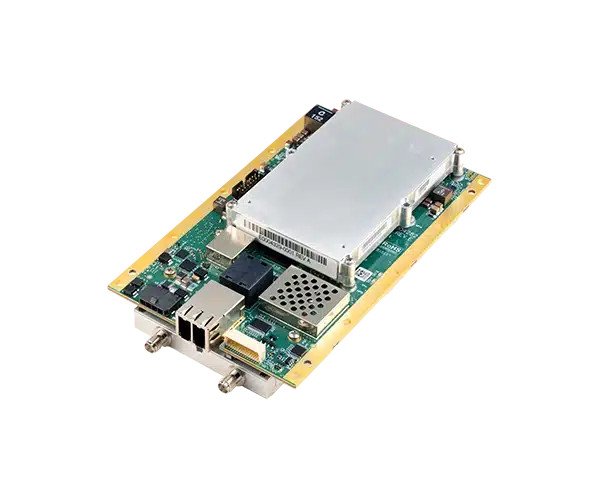

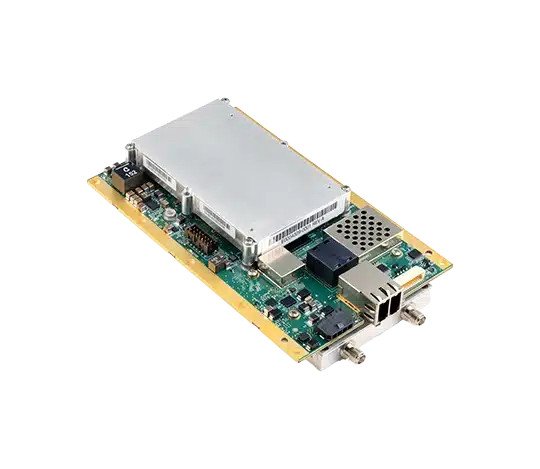

STE iDirect 450 SDM multi-orbit, multi-waveform software defined modem
Introducing our first custom multi-orbit, multi-waveform software defined modem (SDM), the 450. This modem features an innovative three board modular design: Compute (Digital) module, Radio (RF) module, and Carrier Board (optional). The modular design allows integrators to build their own carrier board, allowing for maximum flexibility in terminal design.
Description
Introducing our first custom multi-orbit, multi-waveform software defined modem (SDM), the 450. This modem features an innovative three board modular design: Compute (Digital) module, Radio (RF) module, and Carrier Board (optional). The modular design allows integrators to build their own carrier board, allowing for maximum flexibility in terminal design.
*The 450SDM is designed and manufactured by iDirect Government.
Featuring a small footprint with an overall 30% reduction in overall size, weight, and power (SWaP), the 450SDM supports multiple orbits–geostationary, highly Elliptical orbit, medium-Earth orbit and low-Earth orbit–and a variety of waveforms all on one modem. The high-performance and secure satellite modem expands resiliency for users at the tactical edge and provides flexibility for ever-evolving missions.
Features of the 450SDM
- DVB-S2 up to 125 Msps
- Adaptive TDMA up to 125 Msps
- Multi-waveform and multi-orbit capable
- Designed to meet FIPS 140-3 Level 3 and WGS
Technical Downloads
Additional information
| Weight | 0.55 kg |
|---|---|
| Dimensions | 15.14 × 9.4 × 3.18 cm |
| Brand | iDirect |
| Weight | 0.55 KGS |
| Width | 9.40 (cm) |
| Height | 3.18 (cm) |
| Depth | 15.14 (cm) |
