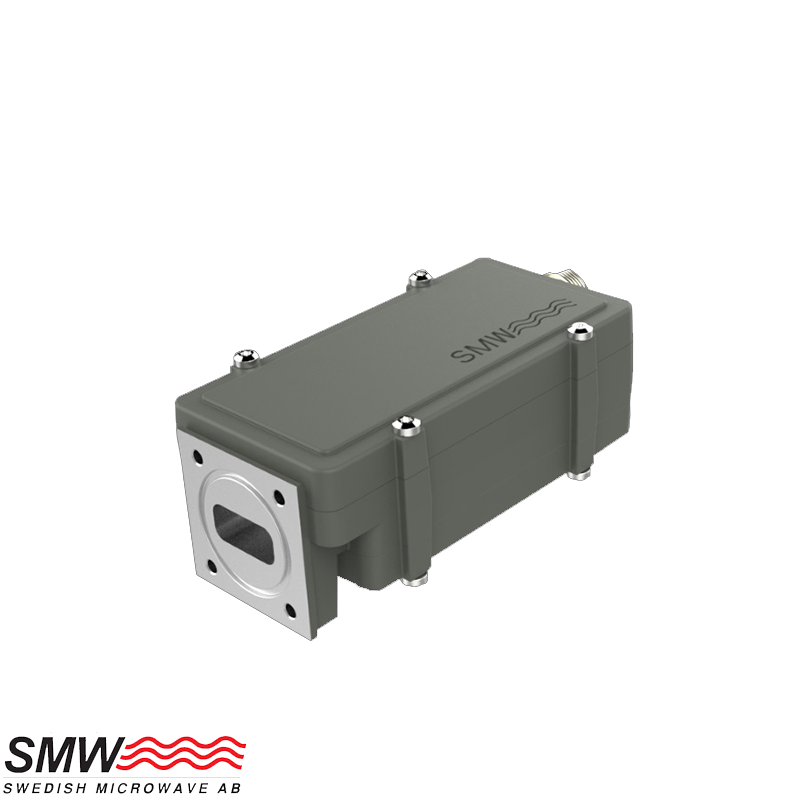

SMW Ku LNB 12.70–15.50 GHz 1-4 Band

Description

SMW Ku LNB 12.70-15.50 GHz 1-4 Band Uplink Monitoring PLL LNB The SMW Ku LNB 12.70-15.50 GHz 1-4 Band Uplink Monitoring is a professional multiband PLL LNB designed for uplink system monitoring, test, and RF network supervision. It supports up to 8 programmable sub-bands with autoswitch 10 MHz reference, advanced alarm & M&C functions, and excellent phase-noise performance. Input Frequency: 12.70 – 15.50 GHz LO Frequencies: 11.75 – 13.50 GHz (1-4 band configurable, up to 8 bands custom) Output Frequency: 950 – 2450 MHz Noise Figure: typ. 1.3 dB (92 K max @ 40-55 dB gain) Gain: 0-55 dB programmable (in 5 dB steps); flatness ±1.5 dB typ. Phase Noise: -35 @ 10 Hz • -63 @ 100 Hz • -83 @ 1 kHz • -85 @ 10 kHz • -118 @ 1 MHz LO Reference: Auto external 10 MHz (-10 to +10 dBm) with internal ±2.5 ppm fallback Alarm / M&C: RS-485 (Modbus RTU) interface with LO lock, LNA fail, and supply monitoring Output P1dB: +15 dBm min Output IP3: +25 dBm min Input Connector: WR75 / R120 (PBR120 flange), pressurizable to 0.1 bar Output Connector: N-female (50 Ω), optional SMA (50 Ω) or F-female (75 Ω) Power Supply: +11 to +26 V DC (6 W max) via output or separate SMA connector Dimensions: 128 × 56 × 47 mm Weight: 360 g Operating Temperature: -40 to +80 °C MTBF: > 690 000 h (ground fixed) Country of Origin: Sweden
