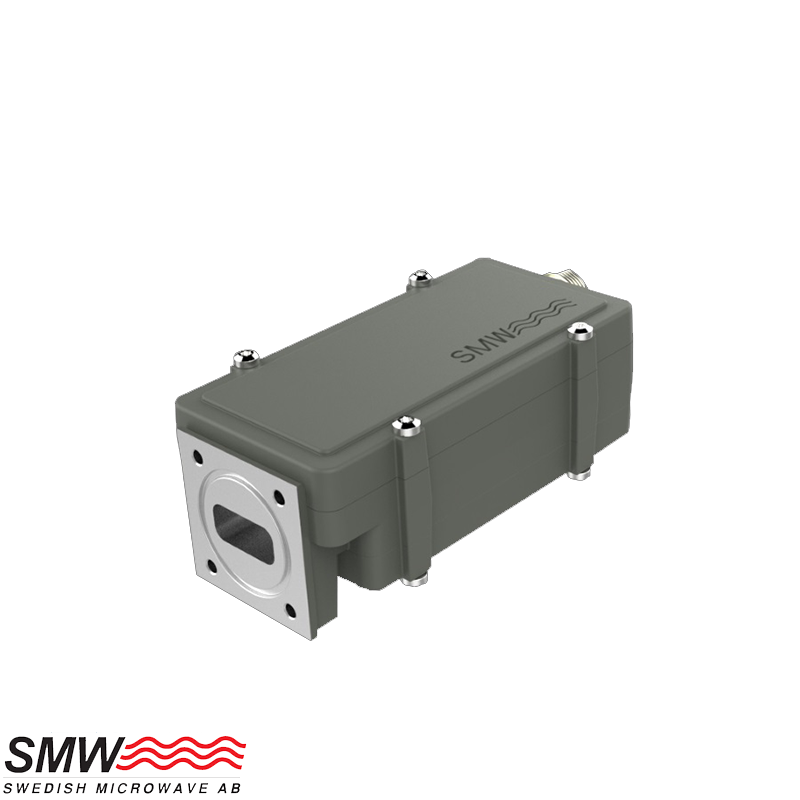

SMW Ku LNB 10.70-12.75 GHz Wideband

Description

SMW Ku LNB 10.70-12.75 GHz 1 Band Wideband PLL LNB The SMW Ku LNB 10.70-12.75 GHz 1 Band Wideband is a high-performance single-LO LNB that covers the full Ku-band with one extended IF output up to 3 GHz. Designed for DVB-S2X and NS4 profiles, it offers ultra-low phase noise (ULPN) performance, optional internal or external 10 MHz reference, and high linearity for demanding professional SATCOM systems. Input Frequency: 10.70 – 12.75 GHz IF Output: 950 – 3000 MHz (9.75 GHz LO) / 950 – 2750 MHz (10.00 GHz LO) / 290 – 2340 MHz (10.41 GHz LO) LO Frequencies: 9.75 / 10.00 / 10.41 GHz LO Stability: ±10 kHz (-20 to +70 °C), ±15 kHz (-40 to +80 °C) internal ref.; external 10 MHz ref -10 to +10 dBm Noise Figure: typ. 0.8 dB (≈ 59 K) Gain: typ. 60 dB (min. 55 dB) ±0.4 dB within 30 MHz; ±3 dB full band Input VSWR: 2.3:1 typ.; 1.25:1 max with isolator Output P1dB: +15 dBm min Output IP3: +25 dBm min Phase Noise: -35 dBc/Hz @ 10 Hz; -65 @ 100 Hz; -82 @ 1 kHz; -94 @ 10 kHz; -98 @ 100 kHz; -120 @ 1 MHz Image Rejection: ≥ 40 dB Out-of-Band Rejection: ≥ 20 dB Group Delay: ±1 ns max Power Supply: +15 – +24 V DC via output connector (160-200 mA typ.) Input Connector: WR75 / R120 (PBR120 flange) Output Connector: N-female 50 Ω (standard) / SMA-female option / F-female for 10.41 GHz model Operating Temperature: -40 °C to +80 °C Dimensions: 128 × 57 × 46 mm (N-connector) Weight: 345 g (N), 329 g (F/SMA) MTBF: > 489,000 hours (GF, MIL-HDBK-217F) Options: Separate SMA for DC or ext. ref., low-loss isolator, TWIN H/V LNB version Country of Origin: Sweden
