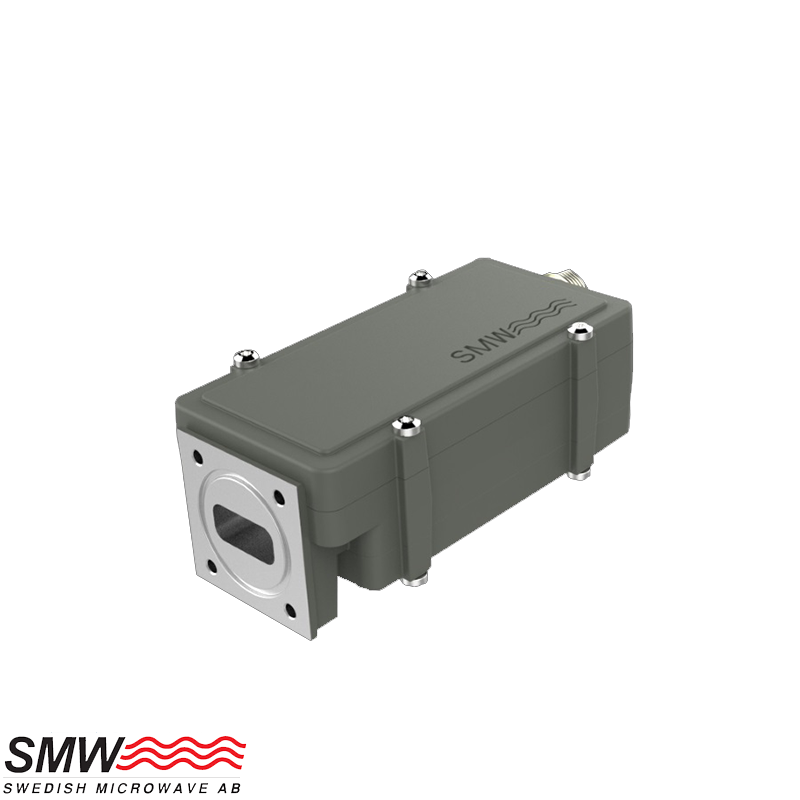

SMW Ku LNB 10.70-12.75 GHz WDL DUAL

Description

SMW Ku LNB 10.70-12.75 GHz WDL ULP Dual PLL LNB The SMW Ku LNB 10.70-12.75 GHz WDL ULP Dual is a professional dual-output PLL LNB designed for simultaneous reception of low and high Ku-bands. With Ultra Low Phase Noise (ULP) and exceptional gain flatness, it meets DVB-S2X, NS3, and NS4 requirements for broadcast and high-throughput SATCOM applications. Input Frequency (Model E): 10.70-12.75 GHz (Model B): 10.95-12.75 GHz

Low/High Band:

10.70-11.70 / 11.70-12.75 GHz (Model E) 10.95-11.70 / 11.70-12.75 GHz (Model B)

LO Frequencies:

9.75 / 10.60 GHz (Model E) 10.00 / 10.75 GHz (Model B)

Output Frequency:

Low Band: 950-1950 MHz (E) | 950-1700 MHz (B) High Band: 1100-2150 MHz (E) | 950-2000 MHz (B) Noise Figure: typ. 0.8 dB (≈59 K) Gain: typ. 60 dB (min. 55 dB); flatness ±0.25 dB within 30 MHz LO Reference: Internal ±1 ppm (-40 to +80 °C) or external 10 MHz (-10 to +10 dBm via output) Phase Noise: -35 dBc/Hz @ 10 Hz; -65 @ 100 Hz; -82 @ 1 kHz; -94 @ 10 kHz; -120 @ >1 MHz Output P1dB: +15 dBm min Output IP3: +25 dBm min Out-of-Band Rejection: ≥ 20 dB Image Rejection: ≥ 40 dB Power Supply: +15 to 24 V DC (5 W typ.) via high-band connector Input Connector: WR75 / R120 (PBR120 flange) Output Connectors: F-female (75 Ω), N-female (50 Ω), or SMA-female (50 Ω) Dimensions: 122 × 57 × 46 mm (F/SMA) | 128 × 57 × 46 mm (N) Weight: 335 g (F/SMA) | 371 g (N) Operating Temperature: -40 to +80 °C MTBF: > 245 000 hours (Ground Fixed) Options: Low-gain (48-54 dB), external 10 MHz via low-band port Country of Origin: Sweden
