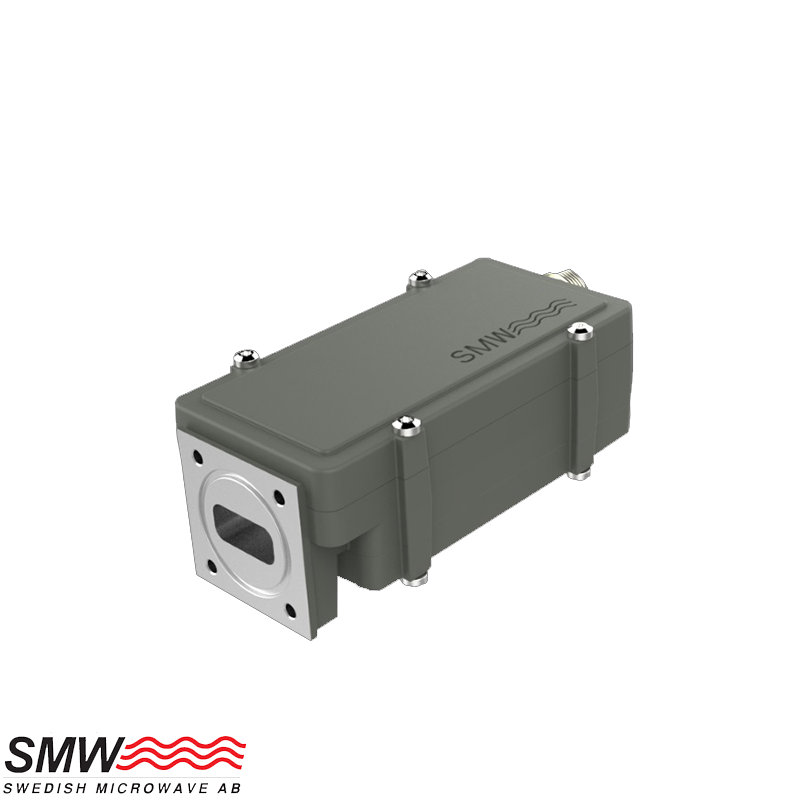

SMW Ku LNB 10.70-12.75 GHz 1 Band

Description

SMW Ku LNB 10.70-12.75 GHz 1 Band Single-Band PLL LNB The SMW Ku LNB 10.70-12.75 GHz 1 Band is a premium single-band PLL LNB engineered for high-performance satellite communications. Featuring excellent phase noise, auto external 10 MHz reference with internal fallback, and optional alarm and M&C functions via Modbus RS485, it ensures outstanding stability and reliability for broadcast and data applications. Input Frequency: 10.70 – 12.75 GHz Output Frequency: 950 – 2150 MHz Local Oscillator (LO): Selectable (9.75 / 10.00 / 10.25 / 10.50 / 10.60 / 10.70 / 10.75 / 11.20 / 11.25 / 11.30 GHz) LO Stability: ±2.5 ppm (-40 to +80 °C) auto-switching ext 10 MHz / internal ref External Reference: -10 to +10 dBm via output or optional SMA port Noise Figure: typ. 0.8 dB (59 K), max. 1.0 dB (75 K) Gain: typ. 60 dB (min. 55 dB); flatness ±1.5 dB Output P1dB: +15 dBm min. Output IP3: +25 dBm min. Phase Noise: -65 dBc/Hz @ 100 Hz, -82 @ 1 kHz, -86 @ 10 kHz, -95 @ 100 kHz, -120 @ 1 MHz Input VSWR: 1.9:1 typ. (3.0:1 max.); Output VSWR: 1.7:1 (N/SMA), 2.3:1 (F) Power Supply: +12 to +24 V DC (11 min / 26 max), 5 W max Input Connector: WR75 / R120 (PBR120 flange), pressurizable 0.1 bar max Output Connector: N-female 50 Ω (standard), optional F or SMA female Alarm & M&C (Option): RS485 Modbus interface for LO lock, supply status & signal monitoring Dimensions: 128 × 56 × 47 mm (with N connector) Weight: 370 g Operating Temperature: -40 to +80 °C MTBF: > 690,000 hours (Ground Fixed per MIL-HDBK-217F) Includes: O-ring and mounting screws Country of Origin: Sweden
