SMW Ku BDC 12.70-15.50 GHz 1-4 Band

Description

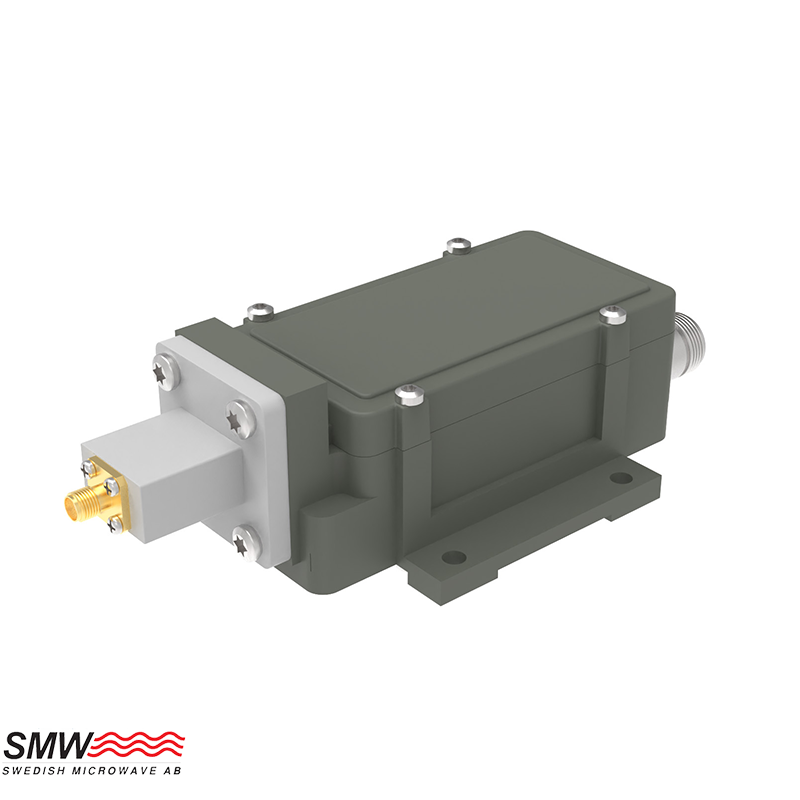

SMW Ku-Band BDC | 12.70-15.50 GHz | 1-4 Band with Modbus M&C The SMW Ku-Band BDC (12.70-15.50 GHz) is a band-switchable downconverter with up to 4 LO bands (expandable to 8), 950-2450 MHz IF output, and selectable gain options (0-15 dB or 20-35 dB). It features auto 10 MHz reference switching and integrated Modbus RS485 M&C for real-time monitoring, control, and alarms-ideal for SATCOM terminals and multi-band RF monitoring.

Key Features:

12.70-15.50 GHz input with 950-2450 MHz IF 1-4 LO band switching (up to 8 on request) Two gain models: 0-15 dB or 20-35 dB Auto 10 MHz reference switching (internal/external) RS485 Modbus M&C and alarm output standard Optional: custom LO, gain, DC input, 10 MHz port
