SMW Ka LNB 25.50-27.00 GHz Earth Observation

Description

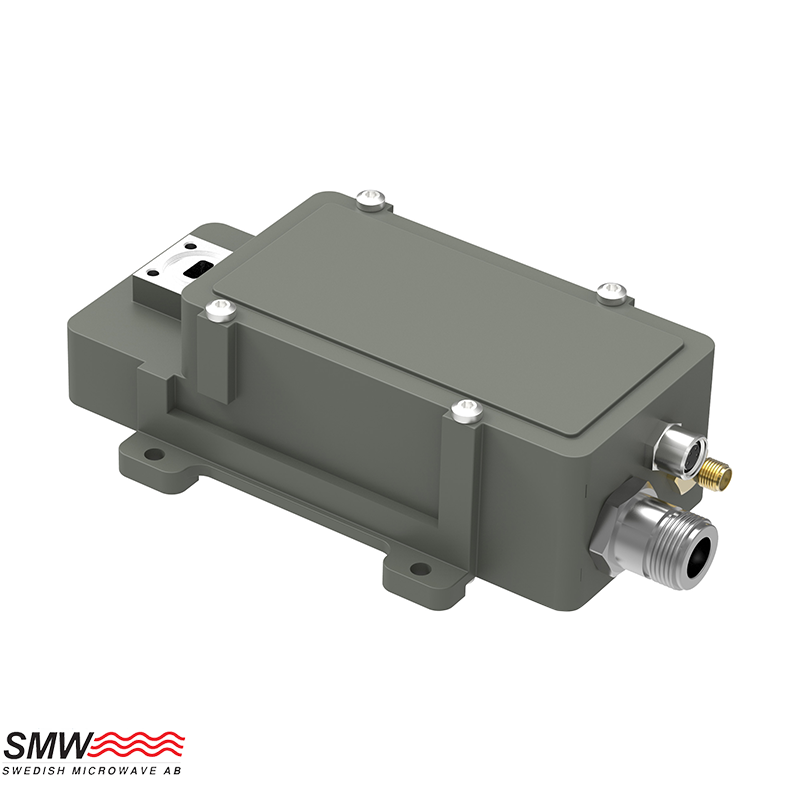

SMW Ka LNB 25.50-27.00 GHz Earth Observation PLL LNB The SMW Ka LNB 25.50-27.00 GHz Earth Observation model is a precision downconverter developed for satellite remote sensing and Earth-observation applications. It combines high dynamic range with auto-switching between internal and external 10 MHz references and includes Modbus RTU RS-485 monitoring & control. The design offers excellent linearity, low phase noise, and robust performance under extreme temperature conditions. Input Frequency: 25.50 – 27.00 GHz Local Oscillator: 23.85 / 24.55 GHz Output Frequency: 2400 MHz ± 750 MHz or 950 – 2450 MHz Noise Figure: typ. 2.2 dB (169 K), max 2.5 dB (226 K) @ 23 °C Gain: typ. 50 dB (48 – 52 dB range); flatness ± 1.5 dB max Phase Noise: -35 @ 10 Hz • -60 @ 100 Hz • -78 @ 1 kHz • -84 @ 10 kHz • -93 @ 100 kHz • -112 @ 1 MHz LO Reference: Auto External 10 MHz (-10 to +10 dBm) / Internal ±2.5 ppm (-40 to +80 °C) Output P1dB: +15 dBm min Output IP3: +25 dBm min Input Connector: WR-34 waveguide (PBR-260 flange, pressurizable 0.1 bar max) Output Connector: N-female (50 Ω, optional SMA-f) Power Supply: +12 – +24 V DC via output or separate connector, 6.5 W max M&C Interface: Modbus RTU RS-485 with alarm output (LNA fail, LO lock, supply low, etc.) Dimensions: 144 × 74 × 45 mm Weight: 430 g Operating Temperature: -40 to +80 °C MTBF: > 690 000 h (Ground Fixed) Country of Origin: Sweden
