SMW Ka LNB 17.70-20.20 GHz SES O3b mPower 3 Band

Description

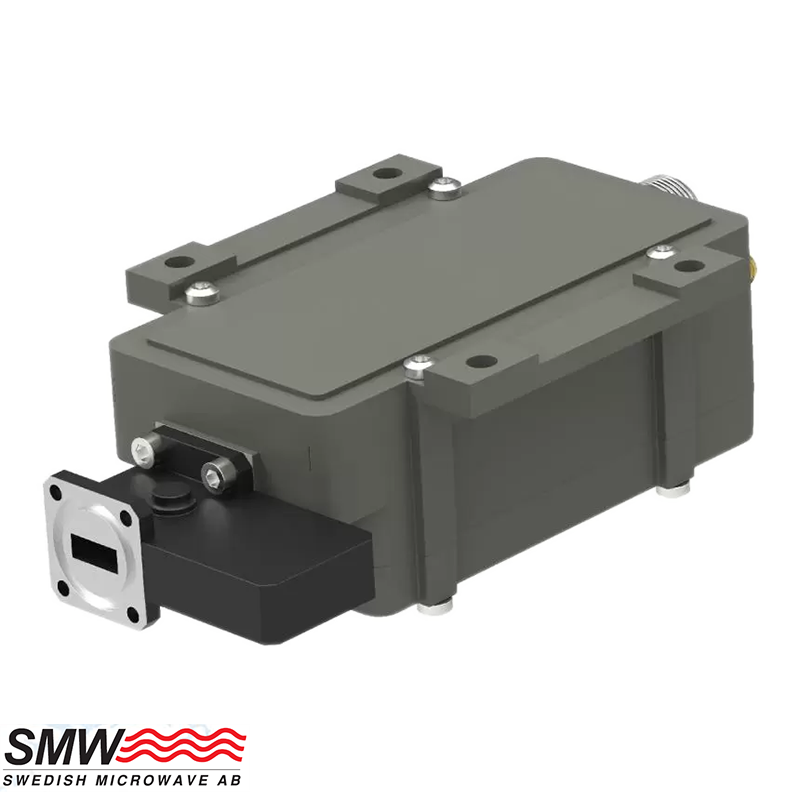

SMW Ka-Band 17.70-20.20 GHz 3-Band PLL LNB (SES O3b mPOWER Certified) The SMW Ka-Band 3-Band PLL LNB (model KA-AOPXXXXX-152A-XX-33-SE) is a professional-grade unit certified by SES O3b mPOWER for use across the 17.70-20.20 GHz Ka downlink range. It offers three switchable sub-bands with precise voltage/tone control, auto external/internal 10 MHz reference, and built-in waveguide isolator. Designed for VSAT and gateway applications, this LNB ensures excellent linearity, stability, and low noise for high-throughput Ka-band networks.

Input Frequency:

Band 1: 17.70-18.70 GHz | Band 2: 18.45-19.45 GHz | Band 3: 19.20-20.20 GHz Local Oscillator: 16.75 / 17.50 / 18.25 GHz Output Frequency: 950-1950 MHz (per band) Band Switching: 13 V (Band 1), 18 V (Band 2), 18 V + 22 kHz (Band 3) Noise Figure: 1.5 / 1.5 / 1.6 dB max Gain: typ. 60 dB (min. 55 dB); flatness ±2 dB per band Phase Noise: -33 dBc/Hz @ 10 Hz; -63 @ 100 Hz; -73 @ 1 kHz; -83 @ 10 kHz; -93 @ 100 kHz Image Rejection: ≥ 40 / 40 / 35 dB LO Reference: Auto-switch external/internal 10 MHz, ±1.5 ppm internal Output P1dB: +15 dBm min Output IP3: +25 dBm min Input Connector: PBR220 / WR-42 waveguide (pressurizable to 0.1 bar) Output Connector: N-type, 50 Ω Power Supply: +13 to +18 V DC, ≤5 W Environmental: -40 to +80 °C operation; -40 to +176 °F storage Dimensions: 153 × 80 × 46 mm (incl. isolator) Weight: 425 g Certifications: SES O3b mPOWER Approved, CE & RoHS Compliant Country of Origin: Sweden
