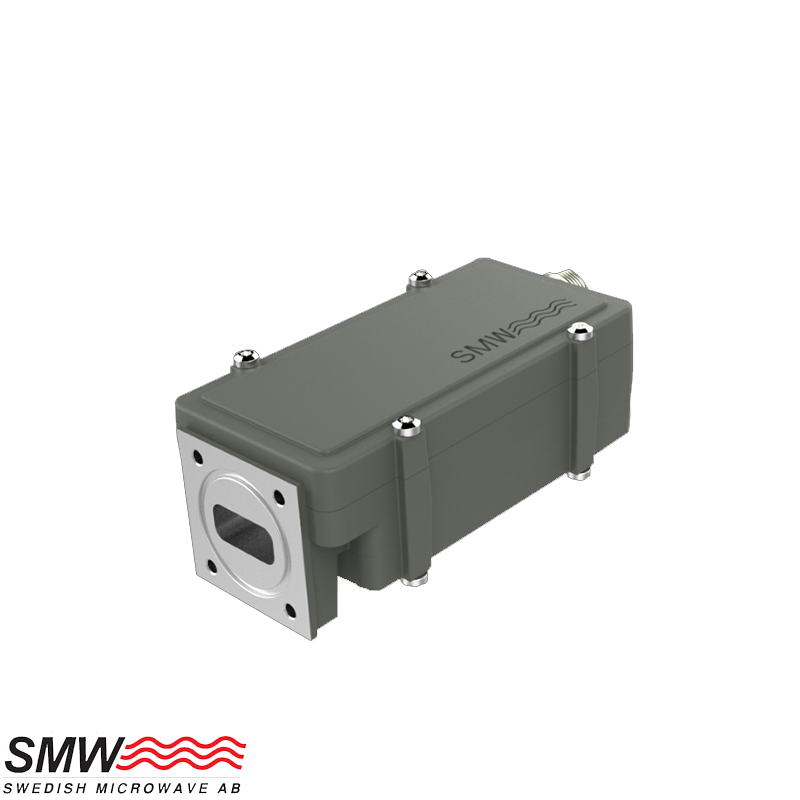

SMW Ka LNB 17.30–22.30 GHz 2 Band

Description

SMW Ka LNB 17.30 – 22.30 GHz 2-Band PLL LNB The SMW Ka LNB 17.30 – 22.30 GHz 2-Band PLL LNB provides precision dual-sub-band reception across the Ka-receive range. With auto-switching between internal and external 10 MHz references, excellent phase-noise performance meeting DVB-S2X profiles, and optional RS-485 M&C interface, it delivers high reliability for gateway and uplink monitoring applications.

Input Frequency Bands:

Band 1 – 17.75-18.75 GHz (typ.) Band 2 – 18.35-19.35 GHz (typ.) (other LO sets configurable 17.2-22.2 GHz per datasheet) Local Oscillators: Dual LO (typ. 16.80/17.40 GHz to 19.25/20.25 GHz) Output Frequency: 950 – 1950 MHz (or 1000 – 2000 MHz depending on model) Noise Figure: typ. 1.3 – 1.5 dB (increases with frequency) Gain: typ. 60 dB (min. 55 dB) • flatness ±0.4 dB (30 MHz), ±1.5 dB (full band) LO Reference: Auto External 10 MHz (-10 to +10 dBm) / Internal ±2.5 ppm (-40 to +80 °C) Phase Noise: -35 @10 Hz • -65 @100 Hz • -80 @1 kHz • -85 @10 kHz • -95 @100 kHz • -112 @1 MHz Output P1dB: +15 dBm min Output IP3: +25 dBm min Input VSWR: 2.3 : 1 typ. (1.35 : 1 with optional isolator) Output Connector: N-female (50 Ω) standard / SMA or F-female options Power Supply: +11 – +26 V DC (5 W max) via output or separate SMA connector M&C (Option): RS-485 (Modbus RTU) with sum alarm output (LNA fail, LO lock, supply low etc.) Dimensions: 127 × 56 × 46 mm Weight: ≈ 354 g Operating Temp.: -40 to +80 °C MTBF: > 690 000 h (Ground Fixed) Country of Origin: Sweden
