SMW C BDC 3.40-4.80 GHz 1 Band

Description

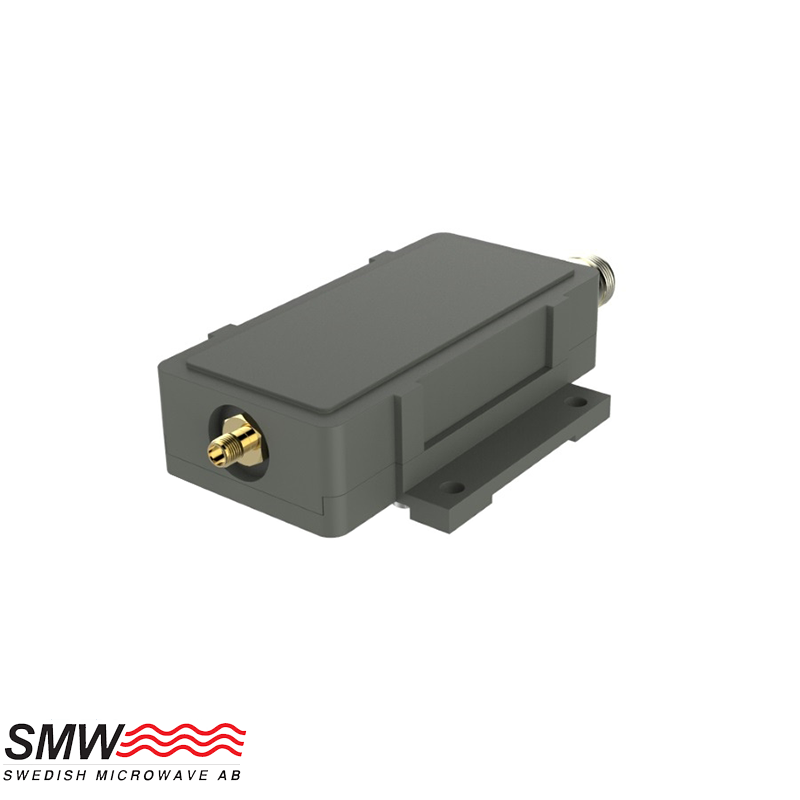

SMW C-Band BDC | 3.40-4.80 GHz | 1-Band PLL Block Downconverter The SMW C-Band PLL BDC offers high-performance downconversion for 3.40-4.80 GHz satellite signals, featuring low phase noise, interference rejection, and factory-configurable gain up to 50 dB. Designed for outdoor use with IP67 protection, it supports internal or external 10 MHz reference and delivers an inverted L-band IF output.

Key Features

RF Input: 3.40-4.80 GHz Inverted-spectrum IF output Adjustable gain: 0-50 dB (factory set) Low phase noise for DVB-S2X Internal filters for interference rejection Internal or external 10 MHz reference High IP3/P1dB for strong signal handling Rugged IP67 housing for outdoor use Connector options: SMA, N-type, or F-type
