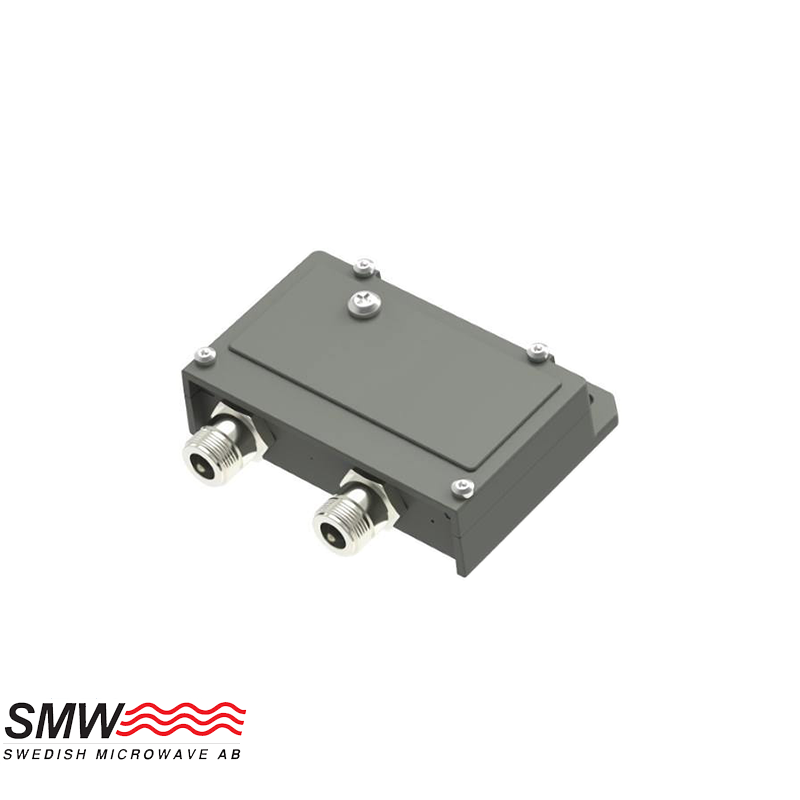

SMW Amplifier Gain Adjustable Line L-Band
SMW Adjustable Line Amplifier | 24 dB Flat or 18-25 dB Slope Gain | Price on request (source catalog shows no public price).
Description
SMW Adjustable Line Amplifier | 24 dB Flat or 18-25 dB Slope Gain The SMW Gain Adjustable Low Power Line Amplifier delivers flat or slope gain options with adjustable attenuation (0 to -10 dB) for precise L-band signal control. Designed for SATCOM IFL chains, it supports 22 kHz tone, 10 MHz bypass, and DC pass-through in a compact, rugged form factor.
Key Features:
Gain options: Flat 24 dB or Slope 18-25 dB Adjustable gain: 0 to -10 dB High IP3 and P1dB for excellent linearity 22 kHz tone and 10 MHz ref bypass DC pass-through standard F-type, N-type, or SMA connectors Optional DC power input (connector or pigtail) Compatible with ILA 18-24 legacy systems
Typical Uses:
L-band IFL gain compensation, signal boosting, legacy amplifier replacement
Additional information
| Brand | Swedish Microwave (SMW) |
|---|
