Sat-Lite RC4100 Integrated Flyaway Controller – 850-0043-B

The Sat-Lite Technologies Flyaway Antenna Controller is a fully weatherized unit that is pre-integrated and can be quickly mounted on the Antenna. The unit comes with a GPS and Compass to provide accurate position and antenna heading information. The control unit deploys the antenna to an accurate elevation and polarization angle and sweeps in azimuth to locate a satellite. The onboard DVB receiver locks on the satellite and positively identifies it. Accurate look angles can then be used to peak on a desired satellite longitude.

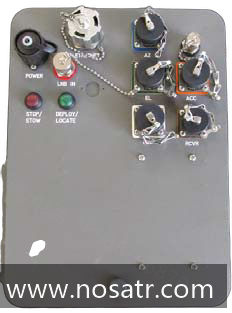

• Outdoor Mounted Antenna Controller

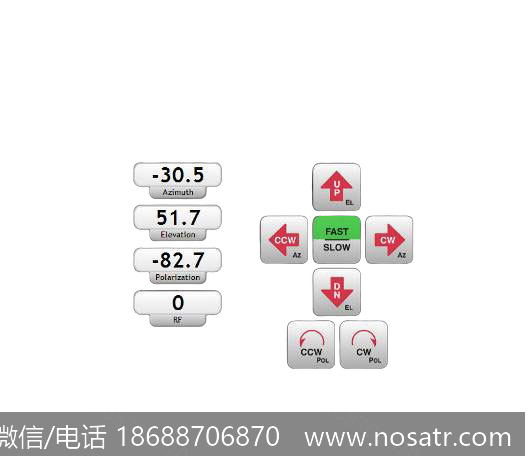

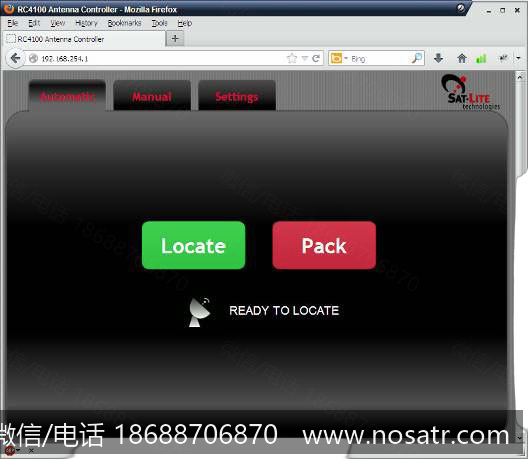

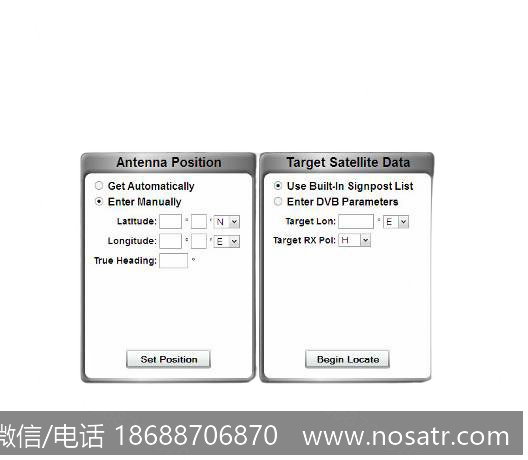

• Simple GUI Ethernet Interface
• Automatic Pointing Solution
• Programmable DVB-S1/S2 Receiver with up to 5 Satellite Signposts for Positive Satellite ID
• Fully Enclosed and Weatherized
• GPS / Single Axis Compass for Auto Acquisition
• One Button Auto Locate Features
