Sat-Lite 26138 XY LEO MEO GEO Tracking Antenna – 850-0088-1

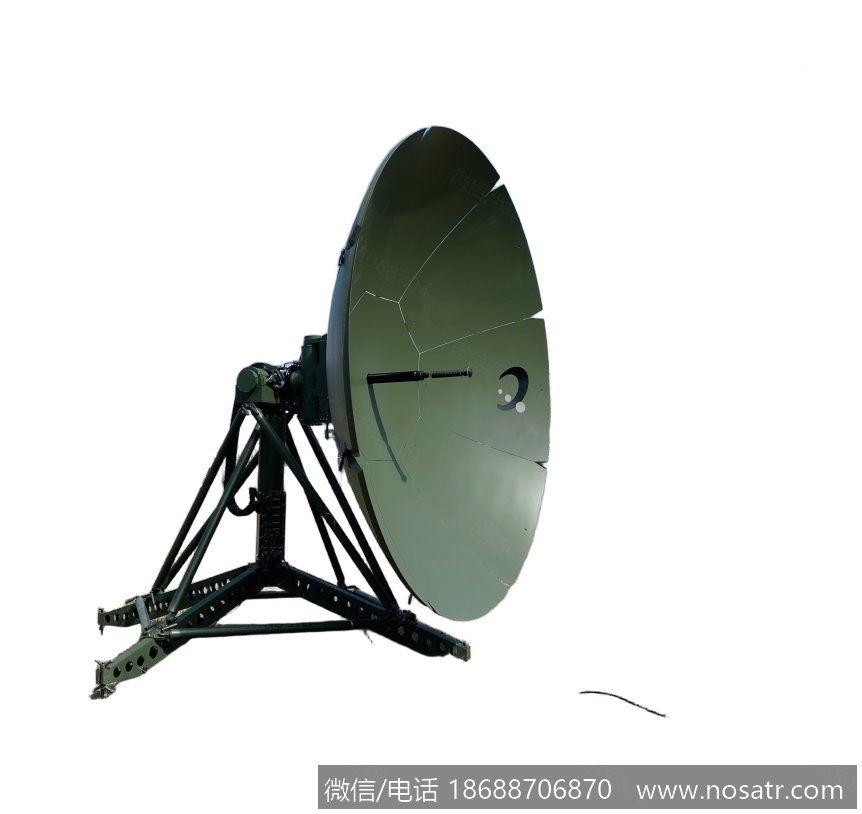

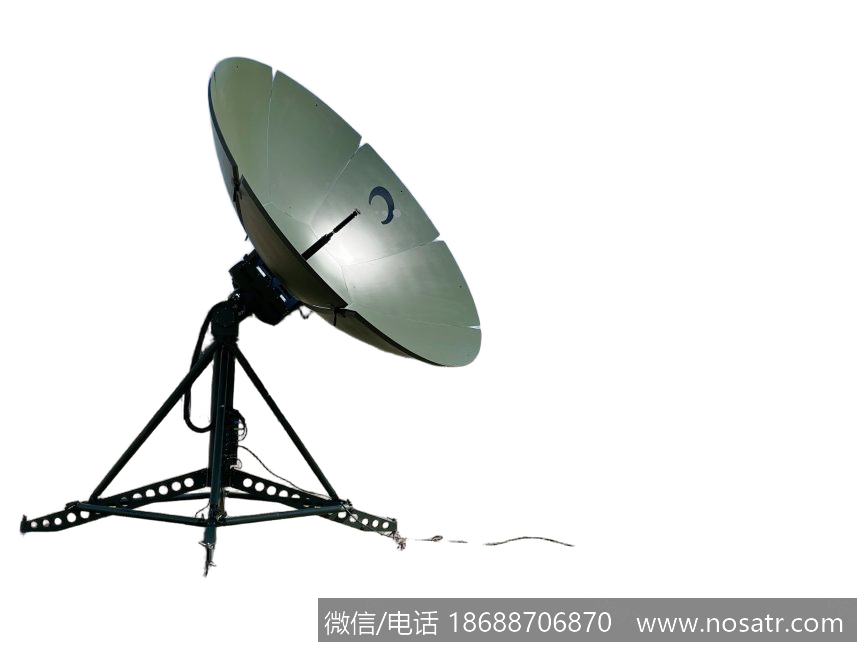

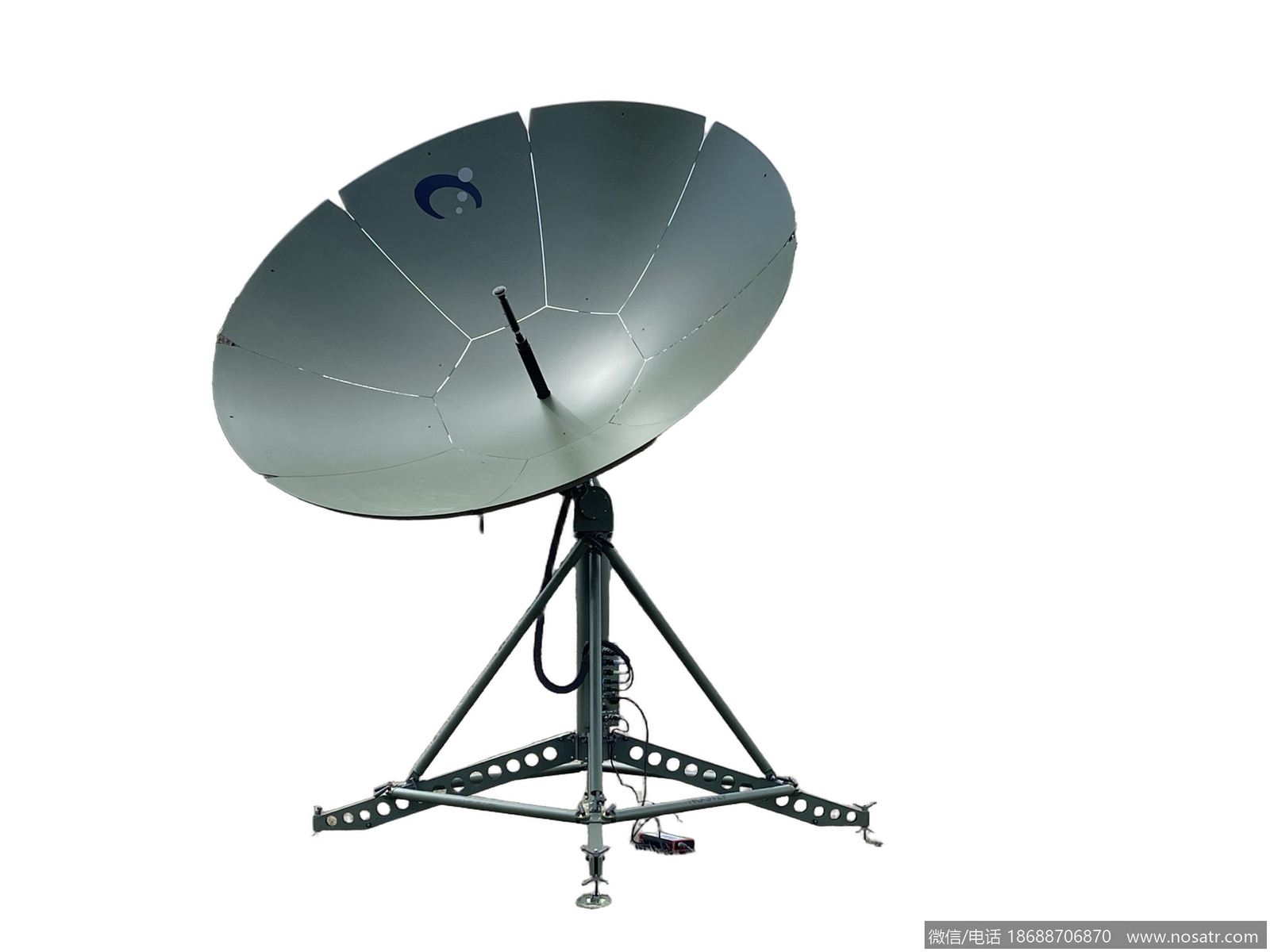

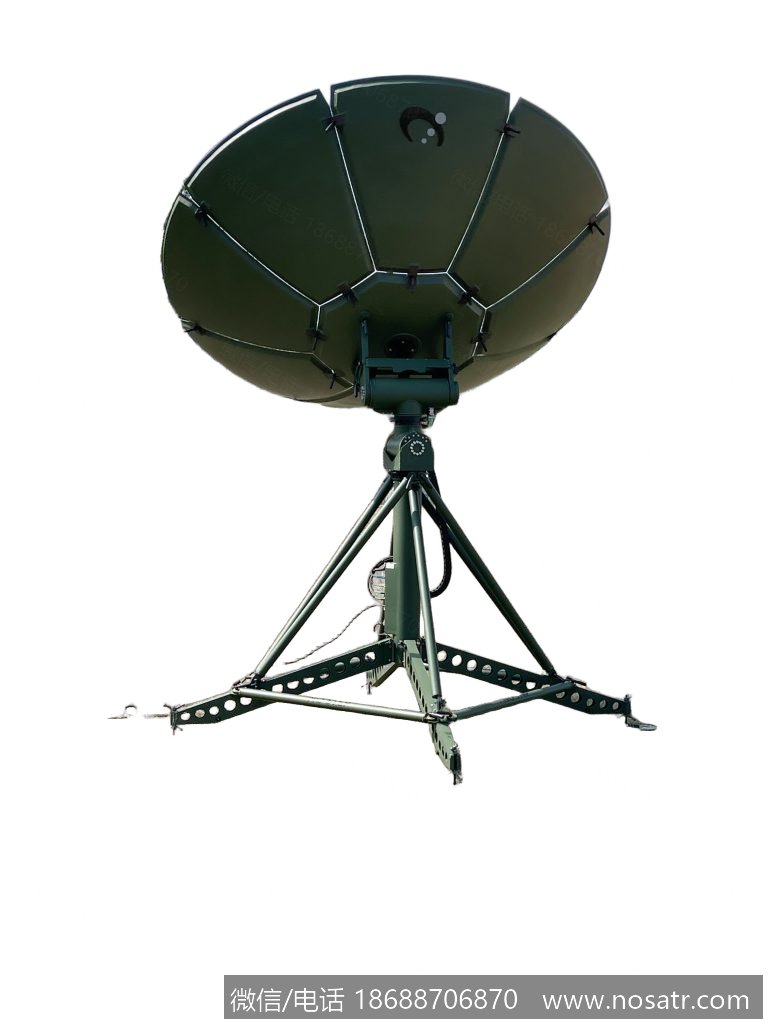

The Sat-Lite Technologies Model 26138 Portable X-Y antenna is designed for high performance portability in a lightweight package. The antenna features a 9-pc segmented carbon fiber composite reflector and a high-performance servo control system. Assembly time is less than 30 minutes. The X-Y Axis pedestal provides excellent high-speed performance for multiple applications, up to 12°/sec. The antenna is designed to meet international performance specifications for LEO / MEO / GEO applications with tracking requirements. The integrated servo system provides full-motion control for continuous operation.

Features

• Portable Package, Ships in Cases, Sets Up in 30 Minutes.
• Full Motion XY Pedestal with +/- 90 Degs of Travel in Both Axes
• High Speed Capable – Up to 12°/Sec Each Axis
• Multi-Band Capable Including S, C, X, Ku, and Ka Band Frequencies
• Integrated High Performance Servo Control System with Precision Tracking
• Optional Integrated L Band Beacon Receiver with Spectrum Analyzer
• Precision Carbon Fiber Reflector, No Special Tools / Bolt Together Design for Ka Performance

Options
• Antenna & Hub mounted Integration
• Elevation over Azimuth Mount Head
• Higher Speed Drives
• Multi-Carrier X Band
