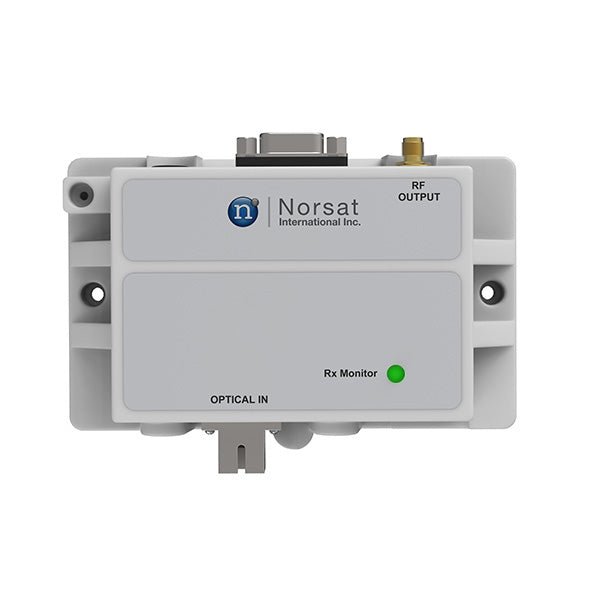

RF over Fiber 3GHz – Receiver Single Mode

RX1 — RF over Fiber 3GHz – Receiver Single Mode

Description

RX1

Parameter	Value
form factor	Indoor Flange Mount
frequency band	30 – 3000 MHz
function	Single Receiver
Product Revision	A
frequency response flatness max	4 dBpp
frequency response flatness typ	3 dBpp
IIP3	Depends on fiber transmitter at other end of link (LNA, no LNA)
lower rolloff	30 MHz
noise figure	Depends on fiber transmitter at other end of link (LNA, no LNA)
output impedance	50 Ohms
output VSWR typ	< 2.0 : 1
RF gain	Depends on fiber transmitter at other end of link (LNA, no LNA)
SFDR	Depends on fiber transmitter at other end of link (LNA, no LNA)
supply current	< 180 mA
supply voltage	9V < Vcc < 30V
optical connectors	SC/APC bulkhead
RF connectors	50 Ohm SMA(f)
operating case temperature	-40°C to +75°C
storage temperature	-40°C to +85°C
product height	32 mm
product length	78 mm
product weight	0.315 kg
product width	128 mm

Model	RX1
form factor	Indoor Flange Mount
frequency band	30 – 3000 MHz
function	Single Receiver
Product Revision	A
frequency response flatness max	4 dBpp
frequency response flatness typ	3 dBpp
IIP3	Depends on fiber transmitter at other end of link (LNA, no LNA)
lower rolloff	30 MHz
noise figure	Depends on fiber transmitter at other end of link (LNA, no LNA)
output impedance	50 Ohms
output VSWR typ	< 2.0 : 1
RF gain	Depends on fiber transmitter at other end of link (LNA, no LNA)
SFDR	Depends on fiber transmitter at other end of link (LNA, no LNA)
supply current	< 180 mA
supply voltage	9V < Vcc < 30V
optical connectors	SC/APC bulkhead
RF connectors	50 Ohm SMA(f)
operating case temperature	-40°C to +75°C
storage temperature	-40°C to +85°C
product height	32 mm
product length	78 mm
product weight	0.315 kg
product width	128 mm
