Description
Contact: Tel / WhatsApp: +86 18688706870 | Web: www.nosatr.com

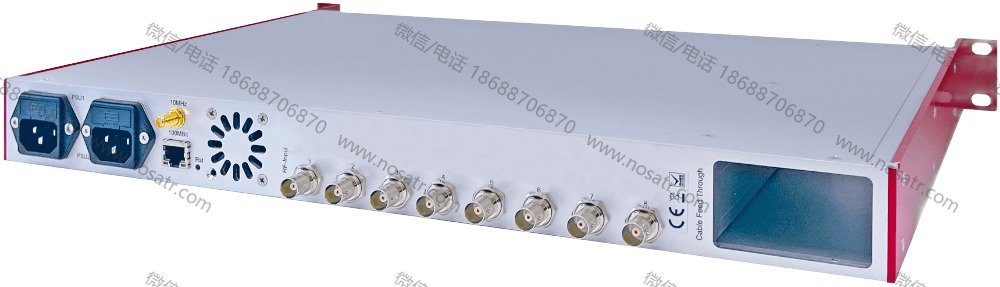

The FlexLink S9E-1608C is a professional L-Band Switch Matrix coming in a compact 1RU/19″ rackmount chassis supporting L-Band and also Extended L-Band frequency range (850 – 2450MHz), useable for Ka-Band and HTS applications. The unit comes with a 16:8 I/O configuration (fan-in/combining) and features variable gain control, RF power monitoring, DC-Supply and 10MHz external ref. signal input (both on request) and 1:1 redundant dual power supply. The unit is available with 50Ohm or 75Ohm RF connectors. A LC-Display with keypads allows easy local configuration. Remote configuration can be done via its Ethernet-Interface (WebGUI, SNMPv2c).
Features & Benefits
-
Space saving 1RU/19″ design
-
L-Band (950 – 2150MHz) and ext. L-Band (850 – 2450MHz)
-
16:8 input/output configuration
-
Available with 50Ohm or 75Ohm I/O connectors
-
Supports variable gain control
-
RF power monitoring
-
Threshold monitoring/alarming
-
Superior RF performance
-
Local and remote configuration
- 1:1 redundant dual power supply

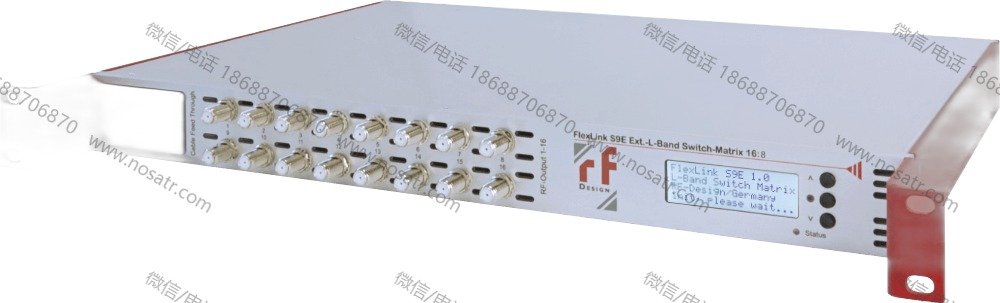

The FlexLink S9E–168C has a LC–Display & keypads for user–friendly local configuration. Remote configuration and monitoring can be done via its Ethernet–Interface (WebGUI, SNMP) while it can also be integrated into a management and control system (NMS or M&C) via SNMP. Isolation, linearity and frequency response are at the highest level assuring excellent and stable operation with superior RF performance and signal quality.
The FlexLink S9E–168C Switch Matrix is designed for today’s and future signal management requirements e.g. in Satellite uplink operations providing maximum flexibility as well as a space and cost efficient solutions.
