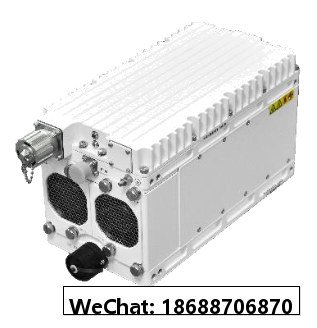

RevGo RGUC–AX40-48XX-M Block Up-Converter (BUC) Ka-Band 40W

The RGUC–AX40-48XX-M is a high-performance Ka-Band Block Up-Converter delivering 40W of output power. Typical VSAT applications include maritime, 5G backhaul, SNG vehicles, and fixed, portable, or transportable terminals.

Reliability
• Highly integrated RF technologies (RFIC and GaN)
• Designed for high volume production
• Linearity optimized for high order modulation and high data rate
• Strict quality control processes resulting in <0.25% field failure rates

Product Features
• Software selectable sub–band 27.5–31 GHz (single–, dual– and tri–band)
• Independently removable fans without causing service interruption
• Variable power consumption 350W (@46dBm)
225W (@43dBm)
• Compact and light weight 12 lbs / 5.8 kg
• Low phase noise (exceeds IESS308/309)
• Stable linearity to 500 MHz bandwidth
• Independently removable fans
• Rugged design for extreme environments (–40 to +60oC)
• M&C with real–time clock, event log, web interface, SNMP, and O–BMIP
