Description

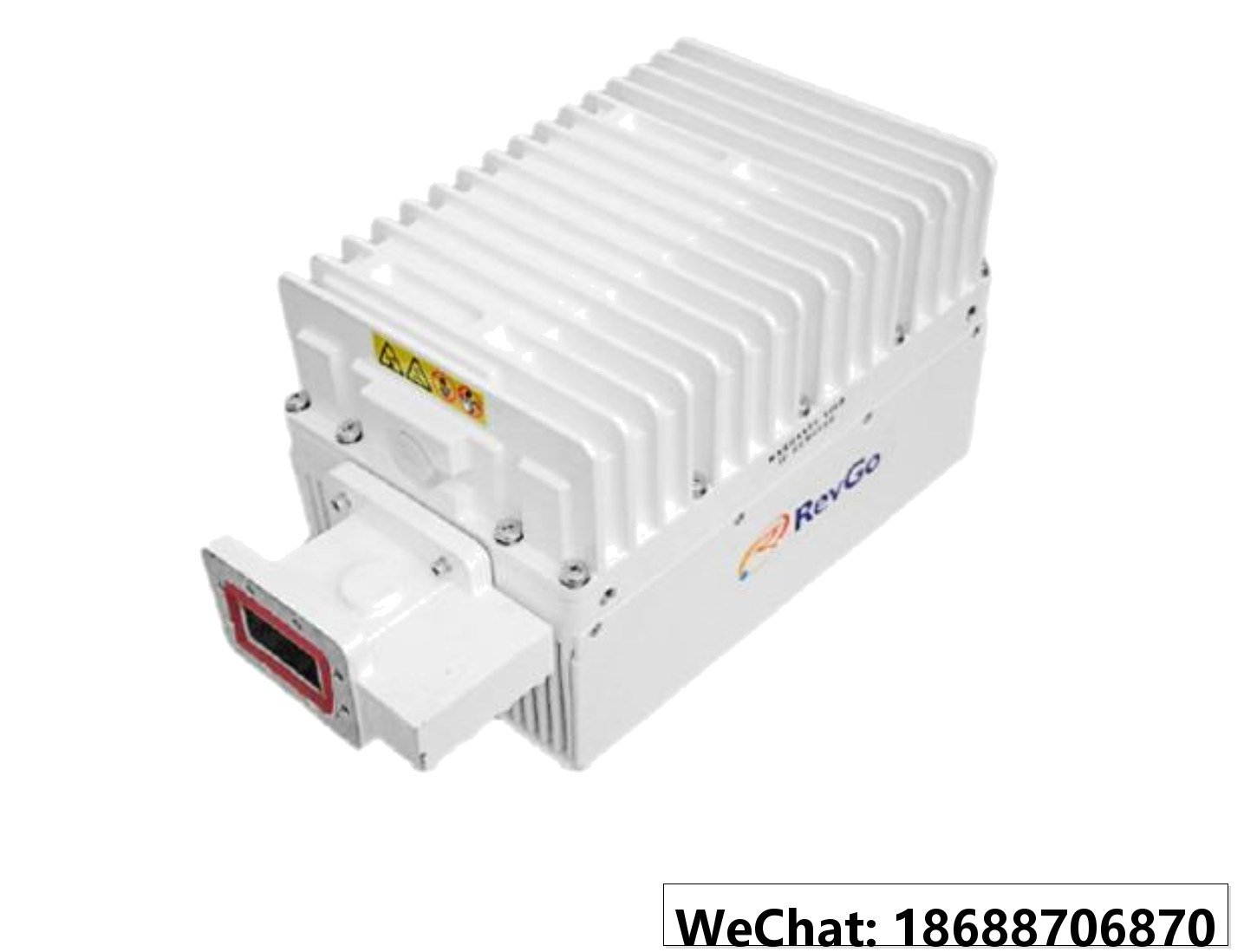

RevGo designs and manufactures satellite earth station RF from low to medium power. RevGo was founded in 2002 with its headquarters in the Washington DC corridor. RevGo’s broad VSAT product line is produced to stringent quality standards using an ISO9001:2015 quality system:
- Block upconverter (BUC)
- Low noise block (LNB)
- Transceiver (Tx/Rx/OMT/filters)
- C-, Ku-, DBS-, Ka-bands2 to 300W output power
Reliability
- Highly integrated RF technologies (RFIC and GaN)
- Designed for high volume production
- Linearity optimized for high order modulation and high data rate
- Strict quality control processes resulting in <0.25% field failure rates
Product Features
- Variable power consumption:
- 25W BUC: 170W @44dBm
- 40W BUC: 210W @46dBm
- Compact and light weight 10.6 lbs/4.8kg@AC 9.7 lbs/4.4kg@DC
- Low phase noise (exceeds IESS308/309)
- Rugged design for extreme environments (-40 to +60oC)
