PAUXIS PX-P007单本振单极化抗5G高频头C-BAND LNBF

Description

>

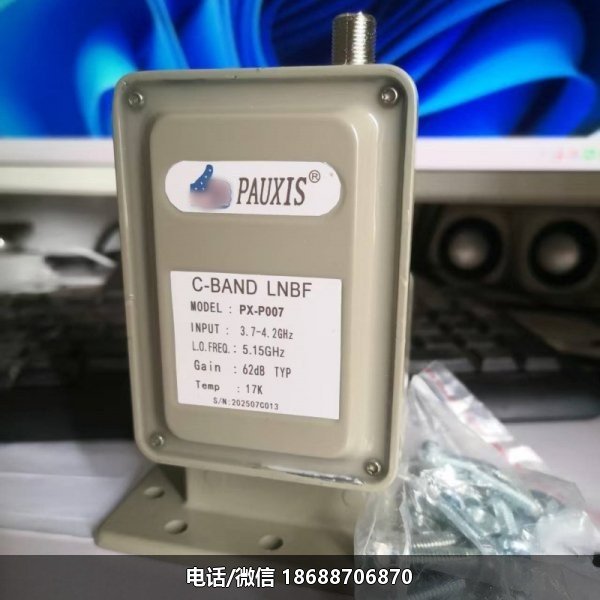

PAUXIS PX-P007 Single Polarization Split type Anti 5G Interference LNB

  The Pus PX-P007 interference high-frequency head is characterized by its small size, good anti 5G effect, and is often used for rear feed antennas. It does not take up space and has high sensitivity.Introduction to C-band bandpass filter:
1. Effectively suppress C-band ground communication interference signals, including WIMAX radar, 5G, and C-band transmitter signals, can be directly installed between the waveguide flange and LNB, double-sided universal and with moisture-proof and insect proof film, suitable for any brand of C-band LNB in the universal series;
2. Frequency scale: 3.70-4.20GHz;
3. Insertion loss within the frequency band: ≤ 0.35dB;
4. Standing wave ratio: ≤ 1.2;
5. Waveguide flange: BJ-40/WR229 compatible (input), BJ-40/WR229 compatible (output);
6. Barrier suppression criteria:
≥60dB@ f ≤3.5GHz；
≥60dB@ 3.5GHz ≤ f ≤3.6GHz；
≥60dB@ 4.4GHz ≤ f ≤4.5GHz：
