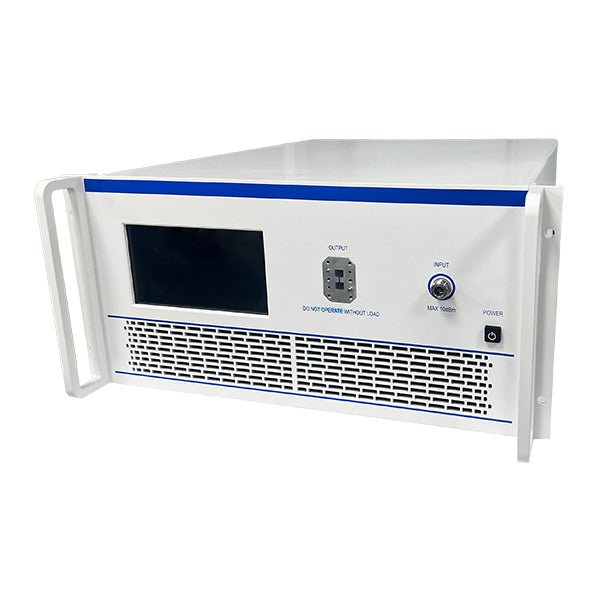

Norsat HPASC045 RF High Power Amplifier Systems 2 – 18 GHz
¥930,618.00
SKU: HPASC045 | Gain Min: 50 dB | Input Frequency Band 1: 2 – 18 GHz | Output Psat Min: 50 dBm | Number Of Bands: Single-Band | Transmission Mode: Continuous Wave
Description
| KEY SPECIFICATIONS | |
| Gain Min | 50 dB |
| Input Frequency Band 1 | 2 – 18 GHz |
| Minimum Output Power Psat | 50 dBm |
| Number Of Bands | Single-Band |
| Output Psat Min | 50 dBm |
| Output Psat Typ | 51 dBm |
| Transmission Mode | Continuous Wave |
| RF SPECIFICATIONS | |
| ESD Sensitivity(Hbm) | Class 0, passed 150V |
| Gain Flatness Typ | ±4 dB |
| Harmonics | -10 dBc max. |
| Input VSWR Max | 2.0 : 1 |
| RF Input Power | 5 dBm |
| Spurious | -50 dBc max. |
| ELECTRICAL SPECIFICATIONS | |
| Control Functions | 1. Power setting On/Off; 2. ALC automatic level control |
| Display Functions | 1. Display the current 2. Out/reflected power; 3. Display fault information |
| Display Fundctions | 1. Display the current out/reflected power; 2. Display fault information |
| Impedance | 50 Ohms |
| Power Consumption | 2000Watts@max. |
| Power Requirements | 220 V AC typ. |
| Protection Functions | 1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR |
| INTERFACE SPECIFICATIONS | |
| Communication Interfaces | DB9/RJ-45 |
| Front Panel LCD Screen Display | 7 inch LCD Screen Display |
| Input Connector | N Female |
| Output Connector | N Female |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude | 10000 feet |
| Relative Humidity | 0.95 |
| Shock (Non Operating) | 20g for 11msc half sin wave, 3 axis both directions |
| Shock/Vibration (MIL-STD-810F) | 25g rms (15-degree 2KHz) endurance, 1 hour per axis |
| Temperature Operational | -20°C to +40°C |
| Temperature Storage | -30°C to +50°C |
| PHYSICAL SPECIFICATIONS | |
| Cooling System | Built in Cooling system, forced air cooliong |
| Product Dimensions | 19 Inch 4U mm |
| Product Weight | ≤ 35 kg |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | 3A001.b.4.b.4 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517799000 |
| Unit Package Dimensions | 535 x 275 x 600 mm |
| Unit Package Weight | 48 kg |
| Warranty | 3 years |
Additional information
| Weight | 35 kg |
|---|---|
| Brand | Norsat |
| Gain Min | 50 dB |
| Input Frequency Band 1 | 2 – 18 GHz |
| Output Psat Min | 50 dBm |
| Number Of Bands | Single-Band |
| Transmission Mode | Continuous Wave |
| RF Input Power | 5 dBm |
| Input VSWR Max | 2.0 : 1 |
| Impedance | 50 Ohms |
| Power Requirements | 220 V AC typ. |
| Cooling System | Built in Cooling system, forced air cooliong |
| Product Dimensions | 19 Inch 4U mm |
| product weight | ≤ 35 kg |
| Country Of Origin | Made in China |
| Warranty | 3 years |
| ECCN Number | 3A001.b.4.b.4 |
