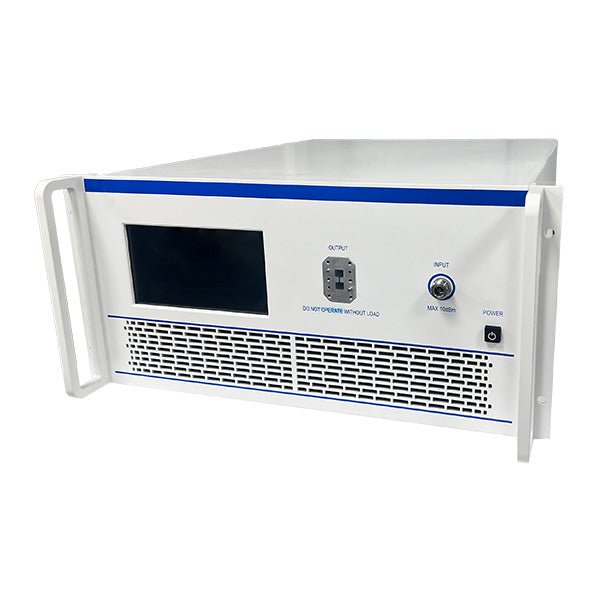

Norsat HPASC016 RF High Power Amplifier Systems 0.5 – 6 GHz
¥135,669.00
SKU: HPASC016 | Gain Min: 40 dB | Input Frequency Band 1: 0.5 – 6 GHz | Output Psat Min: 40 dBm | Number Of Bands: Single-Band | Transmission Mode: Continuous Wave
Description
| KEY SPECIFICATIONS | |
| Gain Min | 40 dB |
| Input Frequency Band 1 | 0.5 – 6 GHz |
| Minimum Output Power Psat | 40 dBm |
| Number Of Bands | Single-Band |
| Output Psat Min | 40 dBm |
| Transmission Mode | Continuous Wave |
| RF SPECIFICATIONS | |
| ESD Sensitivity(Hbm) | Class 0, passed 150V |
| Gain Flatness Typ | ±3.5 dB |
| Harmonics | -10 dBc typ. |
| Input VSWR Max | 2.0 : 1 |
| RF Input Power | 5 dBm |
| Spurious | -60 dBc max. |
| ELECTRICAL SPECIFICATIONS | |
| Display Functions | With output power display functions |
| Display Fundctions | With output power display functions |
| Impedance | 50 Ohms |
| Power Consumption | 150Watts@max. |
| Power Requirements | 220 V AC typ. |
| Protection Functions | 1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR |
| Supply Bias Voltage | 220V AC |
| INTERFACE SPECIFICATIONS | |
| Communication Functions | RS422 |
| Communication Interfaces | DB9 |
| Front Panel LCD Screen Display | LCD Screen Display |
| Input Connector | SMA Female |
| Output Connector | SMA Female |
| Remote Control | RS422 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude | 10000 feet |
| Relative Humidity | 0.95 |
| Shock (Non Operating) | 20g for 11msc half sin wave, 3 axis both directions |
| Shock/Vibration (MIL-STD-810F) | 25g rms (15-degree 2KHz) endurance, 1 hour per axis |
| Temperature Operational | -20°C to +50°C |
| Temperature Storage | -30°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Cooling System | Built in Cooling system, forced air cooliong |
| Product Dimensions | 19 Inch 2U mm |
| Product Weight | 20 kg |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517799000 |
| Unit Package Dimensions | – |
| Unit Package Weight | 23 kg |
| Warranty | 3 years |
Additional information
| Weight | 20 kg |
|---|---|
| Brand | Norsat |
| Gain Min | 40 dB |
| Input Frequency Band 1 | 0.5 – 6 GHz |
| Output Psat Min | 40 dBm |
| Number Of Bands | Single-Band |
| Transmission Mode | Continuous Wave |
| RF Input Power | 5 dBm |
| Input VSWR Max | 2.0 : 1 |
| Impedance | 50 Ohms |
| Power Requirements | 220 V AC typ. |
| Cooling System | Built in Cooling system, forced air cooliong |
| Product Dimensions | 19 Inch 2U mm |
| product weight | 20 kg |
| Country Of Origin | Made in China |
| Warranty | 3 years |
| ECCN Number | EAR99 |
