Norsat 9500HIAN-4 9500 Single Band Ka-Band PLL LNB
Original price was: ¥9,207.00.¥8,800.00Current price is: ¥8,800.00.
Norsat Ka-Band LNB — Norsat 9500HIAN-4 9500 Single Band Ka-Band PLL LNB.
Description
Norsat 9500HIAN-4 9500 Single Band Ka-Band PLL LNB — Norsat Ka-Band Low Noise Block (LNB).
Key Specifications
| Band | Ka-Band |
|---|---|
| Input Frequency Band 1 | 18.20 – 19.20 GHz |
| LO Frequency 1 | 17.25 GHz |
| LO Stability | ±50 kHz |
| LO Type | PLL |
| Noise Figure Max | 1.6 dB |
| Noise Figure Typ | 1.5 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 – 1950 MHz |
RF Specifications
| Conversion Gain Max | 65 dB |
|---|---|
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Input VSWR | 1.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
Electrical Specifications
| Power Requirements | +12 to +24V DC |
|---|
Interface Specifications
| IF Connector | N-Connector |
|---|---|
| Isolator | With Isolator |
| RF Input Connector | WR-42 waveguide grooved |
M & C Specifications
| Led Indicators | None |
|---|
Environmental Specifications
| IP Rating | IP 67 |
|---|---|
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -40 to +80°C |

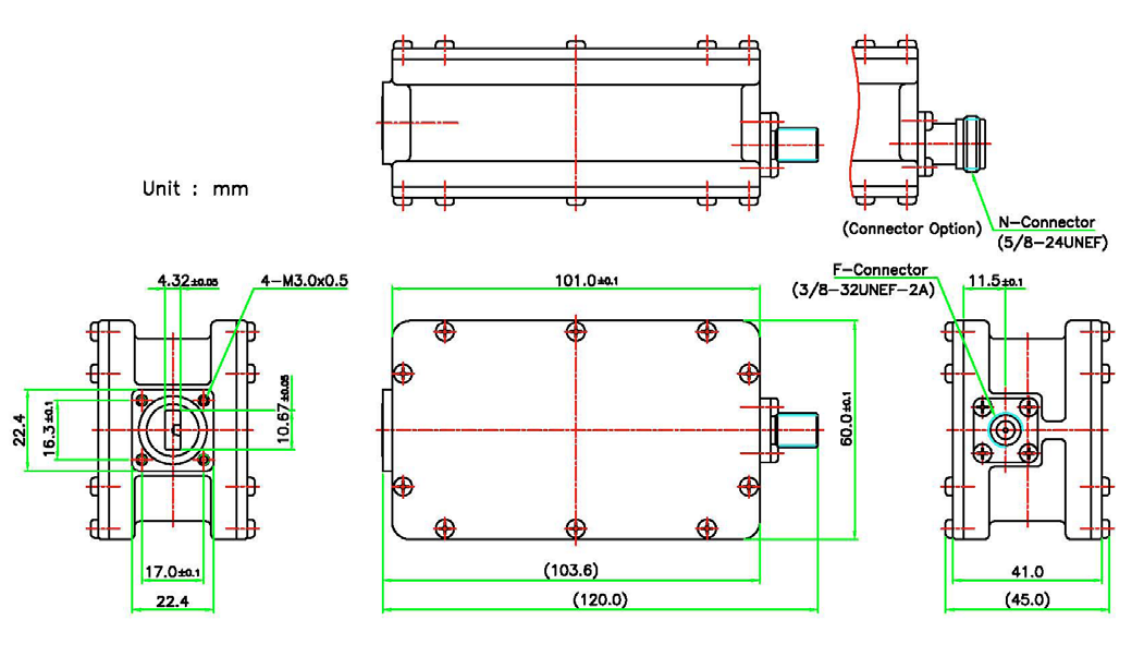

Physical Specifications
| Product Height | 45 mm |
|---|---|
| Product Length | 120 mm |
| Product Weight | 0.42 kg |
| Product Width | 60 mm |
Additional information
| Band | |
|---|---|
| Input Frequency | 18.20 – 19.20 GHz |
| LO Frequency | 17.25 GHz |
| LO Type | PLL |
| Noise Figure | 1.5 dB |
| Conversion Gain (Typ) | 60 dB |
| IF Connector | N-Connector |
| RF input connector | WR-42 waveguide grooved |
| IP rating | IP 67 |
| Operating Temperature | -40°C to +60°C |
| Weight | 0.42 kg |
