Norsat 9500HBCF 9500 Dual-Band Ka-Band PLL LNB
¥1,500.00
KEY SPECIFICATIONS Band Ka-Band Input Frequency Band 1 19.20 – 20.20 GHz Input Frequency Band 2 20.20 – 21.20 GHz LO Frequency 1 18.25 GHz LO Frequency 2 19.25 GHz LO Stability ±50 kHz LO Type PLL Noise Figure Max 1.6 dB Noise Figure Typ 1.
Description
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Input Frequency Band 1 | 19.20 – 20.20 GHz |
| Input Frequency Band 2 | 20.20 – 21.20 GHz |
| LO Frequency 1 | 18.25 GHz |
| LO Frequency 2 | 19.25 GHz |
| LO Stability | ±50 kHz |
| LO Type | PLL |
| Noise Figure Max | 1.6 dB |
| Noise Figure Typ | 1.5 dB |
| Number Of Onboard Los | Dual-Band |
| Output Frequency Band 1 | 950 – 1950 MHz |
| Output Frequency Band 2 | 950 – 1950 MHz |
| RF SPECIFICATIONS | |
| Control Signal 1 | 13V / No Tone |
| Control Signal 2 | 18V / No Tone |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 5 dB p-p |
| Input VSWR | 2.3 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.3 : 1 max. |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| Isolator | No Isolator |
| RF Input Connector | WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -40 to +80°C |

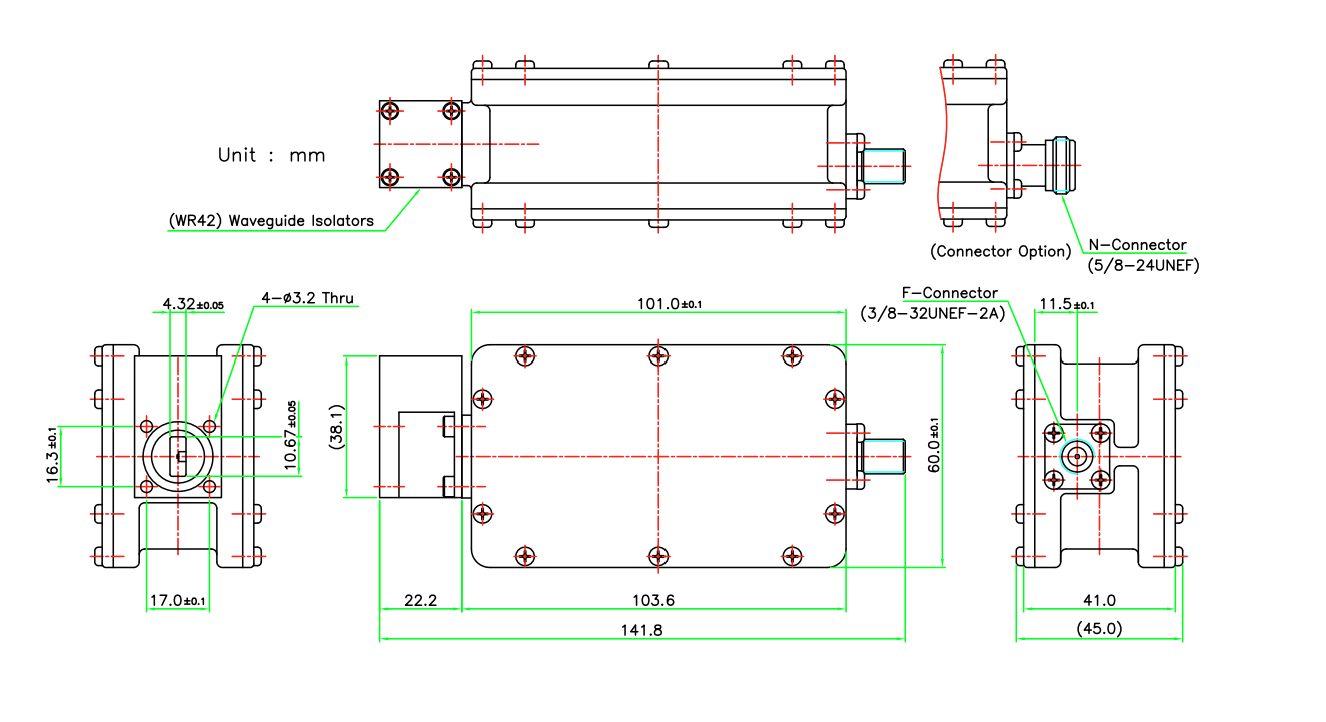

| PHYSICAL SPECIFICATIONS | |
| Product Height | 45 mm |
| Product Length | 119.6 mm |
| Product Weight | 0.42 kg |
| Product Width | 60 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.298 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.745 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Unit Package Dimensions | 118 x 60 x 45 mm |
| Unit Package Height | 45 mm |
| Unit Package Length | 118 mm |
| Unit Package Weight | 0.4 kg |
| Unit Package Width | 60 mm |
| Warranty | 3 years |
Additional information
| Band | Ka-Band |
|---|---|
| Input Frequency Band 1 | 19.20 – 20.20 GHz |
| LO Frequency 1 | 18.25 GHz |
| LO Stability | ±50 kHz |
| LO Type | PLL |
| Noise Figure Max | 1.6 dB |
| Noise Figure Typ | 1.5 dB |
| Number Of Onboard Los | Dual-Band |
| Output Frequency Band 1 | 950 – 1950 MHz |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 5 dB p-p |
| Input VSWR | 2.3 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.3 : 1 max. |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| Power Requirements | +12 to +24V DC |
| IF Connector | F-Connector |
| Isolator | No Isolator |
| RF Input Connector | WR-42 waveguide grooved |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Product Height | 45 mm |
| Product Length | 119.6 mm |
| Product Weight | 0.42 kg |
| Product Width | 60 mm |
| Aluminium Content | 0.298 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.745 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Unit Package Dimensions | 118 x 60 x 45 mm |
| Unit Package Weight | 0.4 kg |
| Warranty | 3 years |
| Temperature Storage | -40 to +80°C |
| Unit Package Height | 45 mm |
| Unit Package Length | 118 mm |
| Unit Package Width | 60 mm |
| Input Frequency Band 2 | 20.20 – 21.20 GHz |
| LO Frequency 2 | 19.25 GHz |
| Output Frequency Band 2 | 950 – 1950 MHz |
| Control Signal 1 | 13V / No Tone |
| Control Signal 2 | 18V / No Tone |
