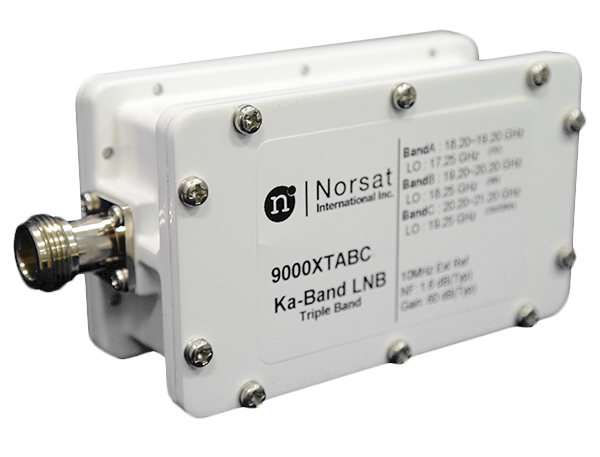

Norsat 9000XTBCDF 9000XT Ka-Band Triple Band EXT REF LNB
¥2,240.00
Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 y
Description
Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. 9000XT Series.
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz (sine-wave), – 5 to +5 dBm |
| Input Frequency Band 1 | 19.20 – 20.20 GHz |
| Input Frequency Band 2 | 20.20 – 21.20 GHz |
| Input Frequency Band 3 | 21.20 – 22.20 GHz |
| LO Frequency 1 | 18.25 GHz |
| LO Frequency 2 | 19.25 GHz |
| LO Frequency 3 | 20.25 GHz |
| LO Stability | Ext Ref |
| LO Type | EXT |
| Noise Figure Max | 1.8 dB |
| Noise Figure Typ | 1.5 dB |
| Number Of Onboard Los | Triple-Band |
| Output Frequency Band 1 | 950 – 1950 MHz |
| Output Frequency Band 2 | 950 – 1950 MHz |
| Output Frequency Band 3 | 950 – 1950 MHz |
| RF SPECIFICATIONS | |
| Control Signal 1 | 13V / No Tone |
| Control Signal 2 | 18V / No Tone |
| Control Signal 3 | 13V / 22kHz Tone |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 58 dB |
| Gain Flatness (Over Full Band) | ≤ 5 dB p-p max. |
| Input VSWR | 3.5 : 1 max. |
| Output P1db | + 3 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 1Khz Offset Max | Depends on External Reference |
| Phase Noise 10Khz Offset Max | Depends on External Reference |
| Phase Noise 100Khz Offset Max | Depends on External Reference |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 400 mA |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Input Connector | WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -40 to +80°C |

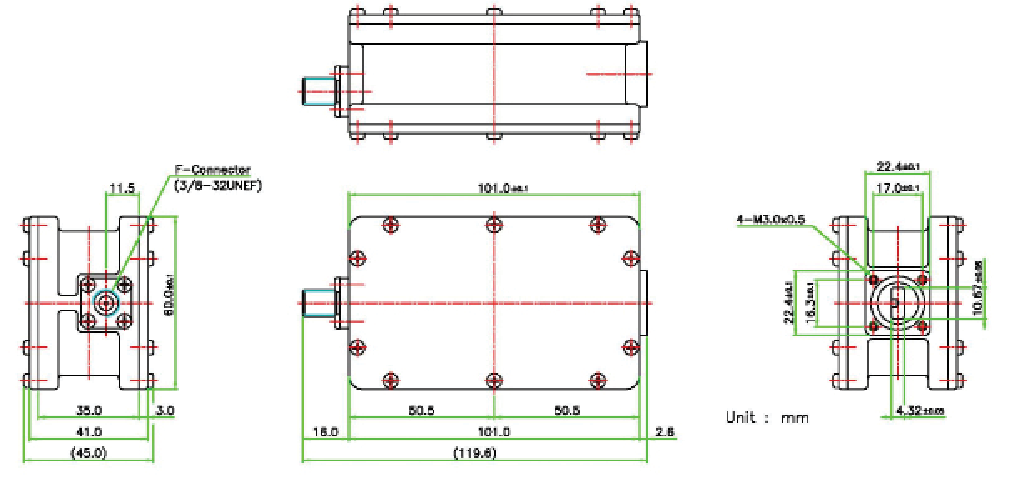

| PHYSICAL SPECIFICATIONS | |
| Product Height | 45 mm |
| Product Length | 120 mm |
| Product Weight | 0.42 kg |
| Product Width | 60 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.298 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.745 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 77 mm |
| Package Length Case 1 | 190 mm |
| Package Width Case 1 | 115 mm |
| Unit Package Dimensions | 190 x 115 x 77 mm |
| Unit Package Weight | 0.46 kg |
| Warranty | 3 years |
Additional information
| Band | Ka-Band |
|---|---|
| External Ref Freq | 10 MHz (sine-wave), – 5 to +5 dBm |
| Input Frequency Band 1 | 19.20 – 20.20 GHz |
| LO Frequency 1 | 18.25 GHz |
| LO Stability | Ext Ref |
| LO Type | EXT |
| Noise Figure Max | 1.8 dB |
| Noise Figure Typ | 1.5 dB |
| Number Of Onboard Los | Triple-Band |
| Output Frequency Band 1 | 950 – 1950 MHz |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 58 dB |
| Gain Flatness (Over Full Band) | ≤ 5 dB p-p max. |
| Input VSWR | 3.5 : 1 max. |
| Output P1db | + 3 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 1Khz Offset Max | Depends on External Reference |
| Phase Noise 10Khz Offset Max | Depends on External Reference |
| Phase Noise 100Khz Offset Max | Depends on External Reference |
| Current Consumption | 400 mA |
| Power Requirements | +12 to +24V DC |
| IF Connector | F-Connector |
| RF Input Connector | WR-42 waveguide grooved |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Product Height | 45 mm |
| Product Length | 120 mm |
| Product Weight | 0.42 kg |
| Product Width | 60 mm |
| Aluminium Content | 0.298 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.745 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 77 mm |
| Package Length Case 1 | 190 mm |
| Package Width Case 1 | 115 mm |
| Unit Package Dimensions | 190 x 115 x 77 mm |
| Unit Package Weight | 0.46 kg |
| Warranty | 3 years |
| Temperature Storage | -40 to +80°C |
| Input Frequency Band 2 | 20.20 – 21.20 GHz |
| LO Frequency 2 | 19.25 GHz |
| Output Frequency Band 2 | 950 – 1950 MHz |
| Control Signal 1 | 13V / No Tone |
| Control Signal 2 | 18V / No Tone |
| Input Frequency Band 3 | 21.20 – 22.20 GHz |
| LO Frequency 3 | 20.25 GHz |
| Output Frequency Band 3 | 950 – 1950 MHz |
| Control Signal 3 | 13V / 22kHz Tone |
