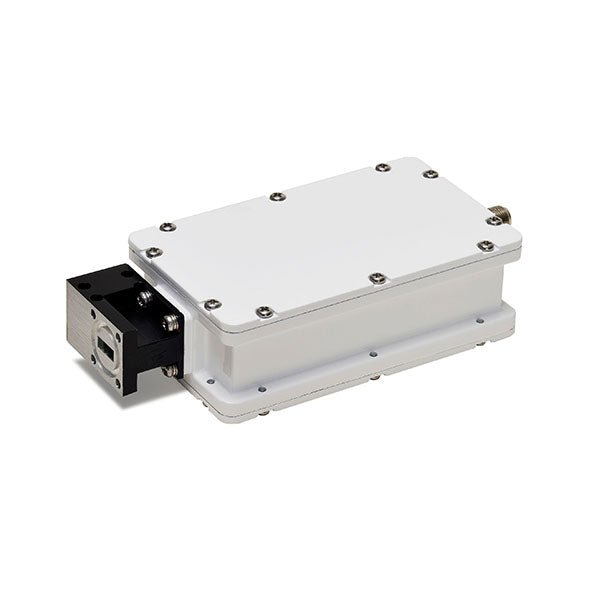

Norsat 9000XIN 9000 Single Band Ka-Band EXT REF LNB
¥5,500.00
Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 y
Description
Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. 9000XI Series.
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz (sine-wave), – 5 to +5 dBm |
| Input Frequency Band 1 | 20.20 – 21.20 GHz |
| LO Frequency 1 | 19.20 GHz |
| LO Stability | Ext Ref |
| LO Type | EXT |
| Noise Figure Max | 1.8 dB |
| Noise Figure Typ | 1.5 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 1000 – 2000 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 64 dB |
| Conversion Gain Min | 56 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p max. |
| Input VSWR | 1.3 : 1 max. |
| Output P1db | + 15 dBm min. |
| Output VSWR | 1.8 : 1 max. |
| Phase Noise 1Khz Offset Max | -72 dBc/Hz |
| Phase Noise 10Khz Offset Max | -82 dBc/Hz |
| Phase Noise 100Khz Offset Max | -92 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 400 mA |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-42 waveguide grooved |
| M AND C SPECIFICATIONS | |
| Led Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -50°C to +70°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 139.6 mm |
| Product Length | 66.8 mm |
| Product Weight | 0.7 kg |
| Product Width | 38.4 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.36 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.9 |
| Country Of Origin | Made in Japan |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Weight | 0.7 kg |
| Warranty | 3 years |
Additional information
| Band | Ka-Band |
|---|---|
| External Ref Freq | 10 MHz (sine-wave), – 5 to +5 dBm |
| Input Frequency Band 1 | 20.20 – 21.20 GHz |
| LO Frequency 1 | 19.20 GHz |
| LO Stability | Ext Ref |
| LO Type | EXT |
| Noise Figure Max | 1.8 dB |
| Noise Figure Typ | 1.5 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 1000 – 2000 MHz |
| Conversion Gain Max | 64 dB |
| Conversion Gain Min | 56 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p max. |
| Input VSWR | 1.3 : 1 max. |
| Output P1db | + 15 dBm min. |
| Output VSWR | 1.8 : 1 max. |
| Phase Noise 1Khz Offset Max | -72 dBc/Hz |
| Phase Noise 10Khz Offset Max | -82 dBc/Hz |
| Phase Noise 100Khz Offset Max | -92 dBc/Hz |
| Current Consumption | 400 mA |
| Power Requirements | +12 to +24V DC |
| IF Connector | N-Connector |
| RF Input Connector | WR-42 waveguide grooved |
| Led Indicators | None |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Product Height | 139.6 mm |
| Product Length | 66.8 mm |
| Product Weight | 0.7 kg |
| Product Width | 38.4 mm |
| Aluminium Content | 0.36 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.9 |
| Country Of Origin | Made in Japan |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Weight | 0.7 kg |
| Warranty | 3 years |
| Temperature Storage | -50°C to +70°C |
