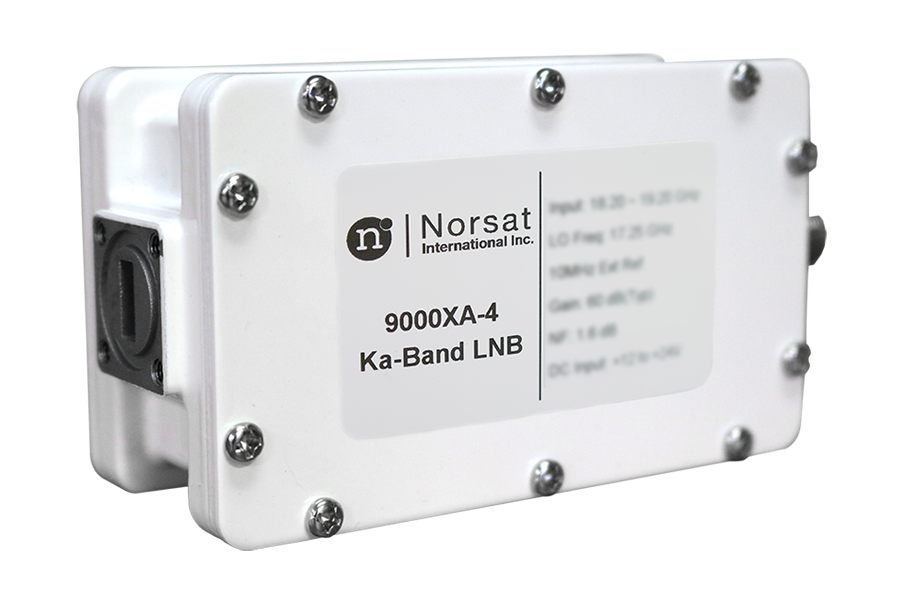

Norsat 9000XI4ADF 9000X4 Ka-Band Quad Band EXT REF LNB
¥4,020.00
KEY SPECIFICATIONS Band Ka-Band External Ref Freq 10 MHz (sine-wave), – 5 to +5 dBm Input Frequency Band 1 18.20 – 19.20 GHz Input Frequency Band 2 19.20 – 20.20 GHz Input Frequency Band 3 20.20 – 21.20 GHz Input Frequency Band 4 21.20 – 22
Description
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz (sine-wave), – 5 to +5 dBm |
| Input Frequency Band 1 | 18.20 – 19.20 GHz |
| Input Frequency Band 2 | 19.20 – 20.20 GHz |
| Input Frequency Band 3 | 20.20 – 21.20 GHz |
| Input Frequency Band 4 | 21.20 – 22.20 GHz |
| LO Frequency 1 | 17.25 GHz |
| LO Frequency 2 | 18.25 GHz |
| LO Frequency 3 | 19.25 GHz |
| LO Frequency 4 | 20.25 GHz |
| LO Stability | Ext Ref |
| LO Type | EXT |
| Noise Figure Max | 1.8 dB |
| Noise Figure Typ | 1.5 dB |
| Number Of Onboard Los | Quad-Band |
| Output Frequency Band 1 | 950 – 1950 MHz |
| Output Frequency Band 2 | 950 – 1950 MHz |
| Output Frequency Band 3 | 950 – 1950 MHz |
| Output Frequency Band 4 | 950 – 1950 MHz |
| RF SPECIFICATIONS | |
| Control Signal 1 | 13V / No Tone |
| Control Signal 2 | 13V / 22kHz Tone |
| Control Signal 3 | 18V / No Tone |
| Control Signal 4 | 18V / 22kHz Tone |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p max. |
| Input VSWR | 1.3 : 1 max. |
| Output P1db | + 10 dBm min. |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 1Khz Offset Max | Depends on External Reference |
| Phase Noise 10Khz Offset Max | Depends on External Reference |
| Phase Noise 100Khz Offset Max | Depends on External Reference |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 350 mA |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| Isolator | With Isolator |
| RF Input Connector | WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 39 mm |
| Product Length | 156 mm |
| Product Weight | 0.56 kg |
| Product Width | 67 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.36 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.9 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 65 mm |
| Package Length Case 1 | 145 mm |
| Package Width Case 1 | 95 mm |
| Unit Package Dimensions | 145 x 95 x 65 mm |
| Unit Package Weight | 0.55 kg |
| Warranty | 3 years |
Additional information
| Band | Ka-Band |
|---|---|
| External Ref Freq | 10 MHz (sine-wave), – 5 to +5 dBm |
| Input Frequency Band 1 | 18.20 – 19.20 GHz |
| LO Frequency 1 | 17.25 GHz |
| LO Stability | Ext Ref |
| LO Type | EXT |
| Noise Figure Max | 1.8 dB |
| Noise Figure Typ | 1.5 dB |
| Number Of Onboard Los | Quad-Band |
| Output Frequency Band 1 | 950 – 1950 MHz |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p max. |
| Input VSWR | 1.3 : 1 max. |
| Output P1db | + 10 dBm min. |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 1Khz Offset Max | Depends on External Reference |
| Phase Noise 10Khz Offset Max | Depends on External Reference |
| Phase Noise 100Khz Offset Max | Depends on External Reference |
| Current Consumption | 350 mA |
| Power Requirements | +12 to +24V DC |
| IF Connector | F-Connector |
| Isolator | With Isolator |
| RF Input Connector | WR-42 waveguide grooved |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Product Height | 39 mm |
| Product Length | 156 mm |
| Product Weight | 0.56 kg |
| Product Width | 67 mm |
| Aluminium Content | 0.36 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.9 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 65 mm |
| Package Length Case 1 | 145 mm |
| Package Width Case 1 | 95 mm |
| Unit Package Dimensions | 145 x 95 x 65 mm |
| Unit Package Weight | 0.55 kg |
| Warranty | 3 years |
| Temperature Storage | -40 to +80°C |
| Input Frequency Band 2 | 19.20 – 20.20 GHz |
| LO Frequency 2 | 18.25 GHz |
| Output Frequency Band 2 | 950 – 1950 MHz |
| Control Signal 1 | 13V / No Tone |
| Control Signal 2 | 13V / 22kHz Tone |
| Input Frequency Band 3 | 20.20 – 21.20 GHz |
| Input Frequency Band 4 | 21.20 – 22.20 GHz |
| LO Frequency 3 | 19.25 GHz |
| LO Frequency 4 | 20.25 GHz |
| Output Frequency Band 3 | 950 – 1950 MHz |
| Output Frequency Band 4 | 950 – 1950 MHz |
| Control Signal 3 | 18V / No Tone |
| Control Signal 4 | 18V / 22kHz Tone |
