Norsat 9000XDN 9000X Single-Band Ka-Band EXT REF LNB – DEMO
KEY SPECIFICATIONS Band Ka-Band External Ref Freq 10 MHz (sine-wave), – 10 to 0 dBm Input Frequency Band 1 21.20 – 22.20 GHz LO Frequency 1 20.25 GHz LO Type PLL Noise Figure Max 1.5 dB Noise Figure Typ 1.4 dB Number Of Onboard Los Single-B
Description
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz (sine-wave), – 10 to 0 dBm |
| Input Frequency Band 1 | 21.20 – 22.20 GHz |
| LO Frequency 1 | 20.25 GHz |
| LO Type | PLL |
| Noise Figure Max | 1.5 dB |
| Noise Figure Typ | 1.4 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 – 1950 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 62 dB |
| Conversion Gain Min | 50 dB |
| Conversion Gain Typ | 55 dB |
| Gain Flatness (Over Full Band) | 5 dB p-p max. |
| Input VSWR | 2.2 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 1Khz Offset Max | -70 dBc/Hz |
| Phase Noise 10Khz Offset Max | -85 dBc/Hz |
| Phase Noise 100Khz Offset Max | -100 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 300 mA max. |
| Power Requirements | +15 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |

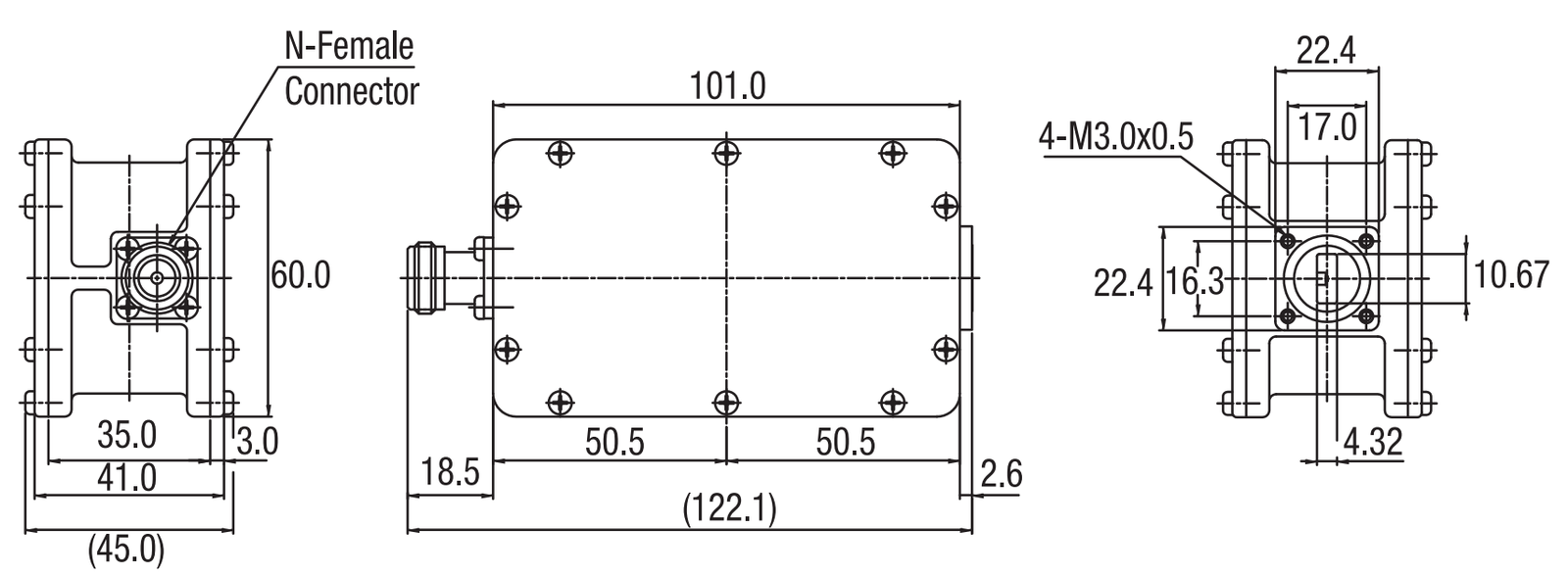

| Product Dimensions (Lxwxh) | 103.6 x 60.0 x 45.0 mm |
| Product Weight | 0.40 kg |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in Japan |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
Additional information
| Band | Ka-Band |
|---|---|
| External Ref Freq | 10 MHz (sine-wave), – 10 to 0 dBm |
| Input Frequency Band 1 | 21.20 – 22.20 GHz |
| LO Frequency 1 | 20.25 GHz |
| LO Type | PLL |
| Noise Figure Max | 1.5 dB |
| Noise Figure Typ | 1.4 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 – 1950 MHz |
| Conversion Gain Max | 62 dB |
| Conversion Gain Min | 50 dB |
| Conversion Gain Typ | 55 dB |
| Gain Flatness (Over Full Band) | 5 dB p-p max. |
| Input VSWR | 2.2 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 1Khz Offset Max | -70 dBc/Hz |
| Phase Noise 10Khz Offset Max | -85 dBc/Hz |
| Phase Noise 100Khz Offset Max | -100 dBc/Hz |
| Current Consumption | 300 mA max. |
| Power Requirements | +15 to +24V DC |
| IF Connector | N-Connector |
| RF Input Connector | WR-42 waveguide grooved |
| Temperature Operational | -40 to +60°C |
| Product Weight | 0.40 kg |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in Japan |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Product Dimensions (Lxwxh) | 103.6 x 60.0 x 45.0 mm |
