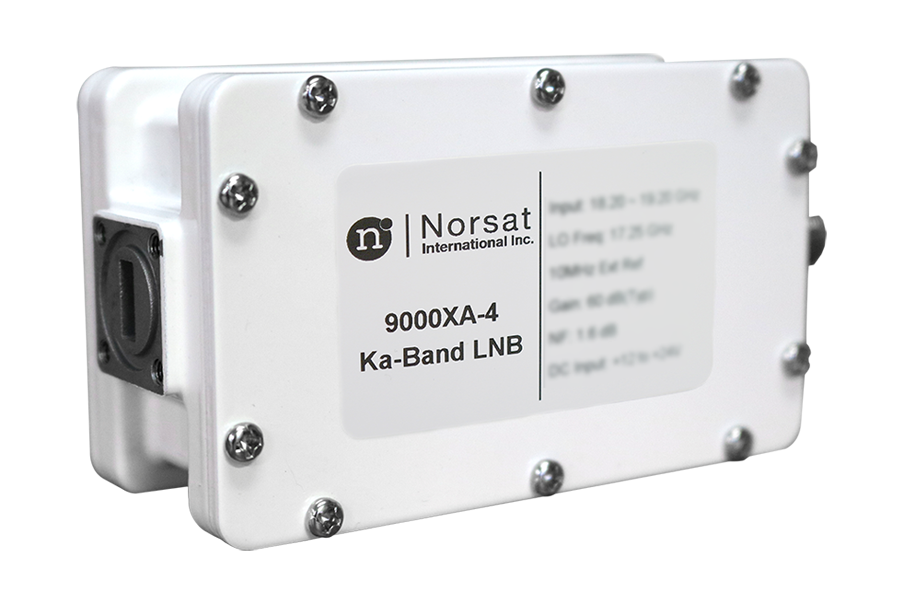

Norsat 9000XAF-4 9000X-4 Single Band Ka-Band EXT REF LNB
¥740.00
KEY SPECIFICATIONS Band Ka-Band External Ref Freq 10 MHz (sine-wave), – 5 to +5 dBm Input Frequency Band 1 18.20 – 19.20 GHz LO Frequency 1 17.25 GHz LO Stability 10 MHz Ext Ref LO Type EXT Noise Figure Max 1.6 dB Noise Figure Typ 1.5 dB Nu
Description

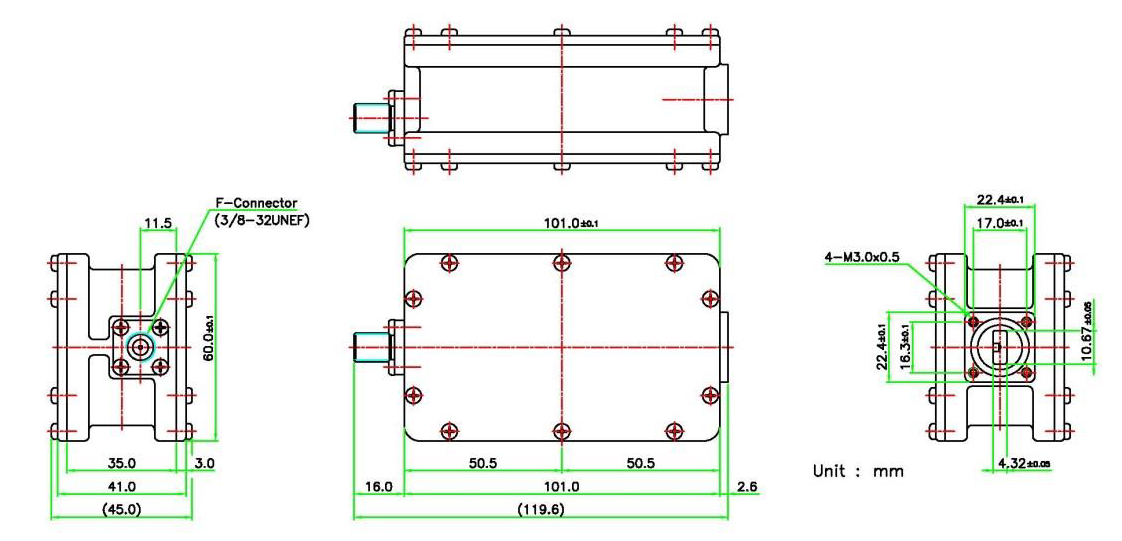

| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz (sine-wave), – 5 to +5 dBm |
| Input Frequency Band 1 | 18.20 – 19.20 GHz |
| LO Frequency 1 | 17.25 GHz |
| LO Stability | 10 MHz Ext Ref |
| LO Type | EXT |
| Noise Figure Max | 1.6 dB |
| Noise Figure Typ | 1.5 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 – 1950 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | 4 dB p-p max. |
| Image Rejection | 40 dBc min. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 1Khz Offset Max | -70 dBc/Hz |
| Phase Noise 10Khz Offset Max | -80 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 400 mA max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| Isolator | No Isolator |
| RF Input Connector | WR-42 waveguide grooved |
| M AND C SPECIFICATIONS | |
| Led Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 45.0 mm |
| Product Length | 103.6 mm |
| Product Weight | 0.42 kg |
| Product Width | 60 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.298 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.745 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 65 mm |
| Package Length Case 1 | 140 mm |
| Package Width Case 1 | 95 mm |
| Unit Package Dimensions | 140 x 95 x 65 mm |
| Unit Package Weight | 0.48 kg |
| Warranty | 3 years |
Additional information
| Band | Ka-Band |
|---|---|
| External Ref Freq | 10 MHz (sine-wave), – 5 to +5 dBm |
| Input Frequency Band 1 | 18.20 – 19.20 GHz |
| LO Frequency 1 | 17.25 GHz |
| LO Stability | 10 MHz Ext Ref |
| LO Type | EXT |
| Noise Figure Max | 1.6 dB |
| Noise Figure Typ | 1.5 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 – 1950 MHz |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | 4 dB p-p max. |
| Image Rejection | 40 dBc min. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 1Khz Offset Max | -70 dBc/Hz |
| Phase Noise 10Khz Offset Max | -80 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| Current Consumption | 400 mA max. |
| Power Requirements | +12 to +24V DC |
| IF Connector | F-Connector |
| Isolator | No Isolator |
| RF Input Connector | WR-42 waveguide grooved |
| Led Indicators | None |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Product Height | 45.0 mm |
| Product Length | 103.6 mm |
| Product Weight | 0.42 kg |
| Product Width | 60 mm |
| Aluminium Content | 0.298 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.745 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 65 mm |
| Package Length Case 1 | 140 mm |
| Package Width Case 1 | 95 mm |
| Unit Package Dimensions | 140 x 95 x 65 mm |
| Unit Package Weight | 0.48 kg |
| Warranty | 3 years |
