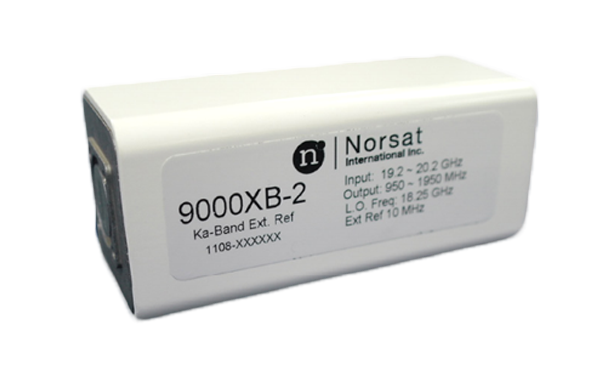

Norsat 9000XA-2 9000X-2 Ka-Band Ext Ref LNB
¥1,144.00
Norsat Ka-Band LNB — Norsat 9000XA-2 9000X-2 Ka-Band Ext Ref LNB.
Description
Norsat 9000XA-2 9000X-2 Ka-Band Ext Ref LNB — Norsat Ka-Band Low Noise Block (LNB).
Key Specifications
| Band | Ka-Band |
|---|---|
| External Ref Freq | 10 MHz (sine-wave), – 5 to +5 dBm |
| Input Frequency Band 1 | 18.20 – 19.20 GHz |
| LO Frequency 1 | 17.25 GHz |
| LO Stability | 10MHz Ext Ref |
| LO Type | EXT |
| Noise Figure Max | 1.6 dB |
| Noise Figure Typ | 1.5 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 – 1950 MHz |
RF Specifications
| Conversion Gain Max | 65 dB |
|---|---|
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | 4 dB p-p max. |
| Image Rejection | 40 dBc min. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 1Khz Offset Max | Depends on External Reference |
| Phase Noise 10Khz Offset Max | Depends on External Reference |
| Phase Noise 100Khz Offset Max | Depends on External Reference |
Electrical Specifications
| Current Consumption | 350 mA max. |
|---|---|
| Power Requirements | +12 to +24V DC |
Interface Specifications
| IF Connector | F-Connector |
|---|---|
| Isolator | No Isolator |
| RF Input Connector | WR-42 waveguide grooved |
M & C Specifications
| Led Indicators | None |
|---|
Environmental Specifications
| IP Rating | IP 67 |
|---|---|
| Temperature Operational | -40 to +60°C |
Physical Specifications
| Product Height | 42.2 mm |
|---|---|
| Product Length | 98.7 mm |
| Product Weight | 0.27 kg |
| Product Width | 42.4 mm |
Additional information
| Band | |
|---|---|
| Input Frequency | 18.20 – 19.20 GHz |
| LO Frequency | 17.25 GHz |
| LO Type | EXT |
| Noise Figure | 1.5 dB |
| Conversion Gain (Typ) | 60 dB |
| IF Connector | F-Connector |
| RF input connector | WR-42 waveguide grooved |
| IP rating | IP 67 |
| Operating Temperature | -40 to +60°C |
| Weight | 0.27 kg |
