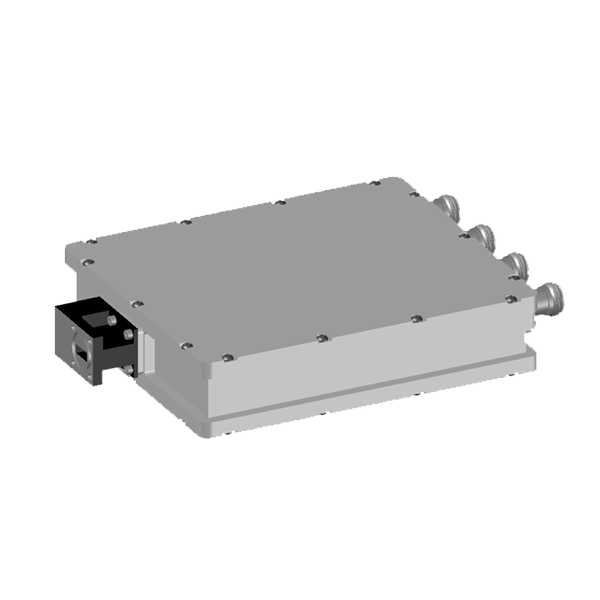

Norsat 9000SXUBS 9000 Ka-Simultaneous Quad Band PLL EXT LNB
¥7,960.00
KEY SPECIFICATIONS Band Ka-Band External Input Port SMA Connector External Ref Freq 10MHz, -5 to +5dBm Input Frequency Band 1 18.20 – 19.20 GHz Input Frequency Band 2 19.20 – 20.20 GHz Input Frequency Band 3 20.20 – 21.20 GHz Input Frequenc
Description
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Input Port | SMA Connector |
| External Ref Freq | 10MHz, -5 to +5dBm |
| Input Frequency Band 1 | 18.20 – 19.20 GHz |
| Input Frequency Band 2 | 19.20 – 20.20 GHz |
| Input Frequency Band 3 | 20.20 – 21.20 GHz |
| Input Frequency Band 4 | 21.20 – 22.20 GHz |
| LO Frequency 1 | 17.25 GHz |
| LO Frequency 2 | 18.25 GHz |
| LO Frequency 3 | 19.25 GHz |
| LO Frequency 4 | 20.25 GHz |
| LO Stability | Ext Ref |
| LO Type | EXT |
| Noise Figure Max | 2.3 dB |
| Number Of Onboard Los | Simultaneous Quad Band |
| Output Frequency Band 1 | 950 – 1950 MHz |
| Output Frequency Band 2 | 950 – 1950 MHz |
| Output Frequency Band 3 | 950 – 1950 MHz |
| Output Frequency Band 4 | 950 – 1950 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (36Mhz) | 1 dB p-p |
| Gain Flatness (Over Full Band) | 4 dB p-p |
| Image Rejection | 40 dBc min. |
| Input VSWR | 3.5 : 1 max. |
| Output P1db | 5 dBm min. |
| Output VSWR | 2.2 : 1 max. |
| Phase Noise 1Khz Offset Max | -70 dBc/Hz |
| Phase Noise 10Khz Offset Max | -80 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 450 mA max. (each band) |
| Power Requirements | +12 to +24V DC (each band) |
| INTERFACE SPECIFICATIONS | |
| IF Connector | SMA Connector |
| Isolator | No Isolator |
| RF Input Connector | WR 42 |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 188.2 mm |
| Product Length | 38.4 mm |
| Product Weight | 1 kg |
| Product Width | 141 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.1051 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.26275 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Unit Package Dimensions | 190 x 145 x 40 mm |
| Unit Package Height | 40 mm |
| Unit Package Length | 190 mm |
| Unit Package Weight | 1.4 kg |
| Unit Package Width | 145 mm |
| Warranty | 3 years |
Additional information
| Band | Ka-Band |
|---|---|
| External Ref Freq | 10MHz, -5 to +5dBm |
| Input Frequency Band 1 | 18.20 – 19.20 GHz |
| LO Frequency 1 | 17.25 GHz |
| LO Stability | Ext Ref |
| LO Type | EXT |
| Noise Figure Max | 2.3 dB |
| Number Of Onboard Los | Simultaneous Quad Band |
| Output Frequency Band 1 | 950 – 1950 MHz |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | 4 dB p-p |
| Image Rejection | 40 dBc min. |
| Input VSWR | 3.5 : 1 max. |
| Output P1db | 5 dBm min. |
| Output VSWR | 2.2 : 1 max. |
| Phase Noise 1Khz Offset Max | -70 dBc/Hz |
| Phase Noise 10Khz Offset Max | -80 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| Current Consumption | 450 mA max. (each band) |
| Power Requirements | +12 to +24V DC (each band) |
| IF Connector | SMA Connector |
| Isolator | No Isolator |
| RF Input Connector | WR 42 |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Product Height | 188.2 mm |
| Product Length | 38.4 mm |
| Product Weight | 1 kg |
| Product Width | 141 mm |
| Aluminium Content | 0.1051 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.26275 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Unit Package Dimensions | 190 x 145 x 40 mm |
| Unit Package Weight | 1.4 kg |
| Warranty | 3 years |
| Unit Package Height | 40 mm |
| Unit Package Length | 190 mm |
| Unit Package Width | 145 mm |
| Input Frequency Band 2 | 19.20 – 20.20 GHz |
| LO Frequency 2 | 18.25 GHz |
| Output Frequency Band 2 | 950 – 1950 MHz |
| External Input Port | SMA Connector |
| Input Frequency Band 3 | 20.20 – 21.20 GHz |
| Input Frequency Band 4 | 21.20 – 22.20 GHz |
| LO Frequency 3 | 19.25 GHz |
| LO Frequency 4 | 20.25 GHz |
| Output Frequency Band 3 | 950 – 1950 MHz |
| Output Frequency Band 4 | 950 – 1950 MHz |
| Gain Flatness (36Mhz) | 1 dB p-p |
