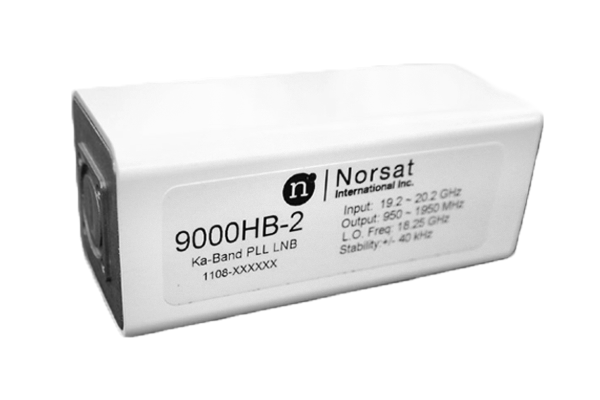

Norsat 9000HBF-2 9000H-2 Single Band Ka-Band PLL LNB
¥600.00
Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 y
Description
Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. 9000H-2 Series.
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Input Frequency Band 1 | 19.20 – 20.20 GHz |
| LO Frequency 1 | 18.25 GHz |
| LO Stability | ±60 kHz |
| LO Type | PLL |
| Noise Figure Max | 1.8 dB |
| Noise Figure Typ | 1.5 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 – 1950 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 50 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | 5 dB p-p |
| Input VSWR | 3.0 : 1 max. |
| Output P1db | + 3 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 1Khz Offset Max | -75 dBc/Hz |
| Phase Noise 10Khz Offset Max | -80 dBc/Hz |
| Phase Noise 100Khz Offset Max | -100 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 300 mA |
| Power Requirements | +15 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Input Connector | WR-42 waveguide grooved |
| M AND C SPECIFICATIONS | |
| Led Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40°C to +60°C |

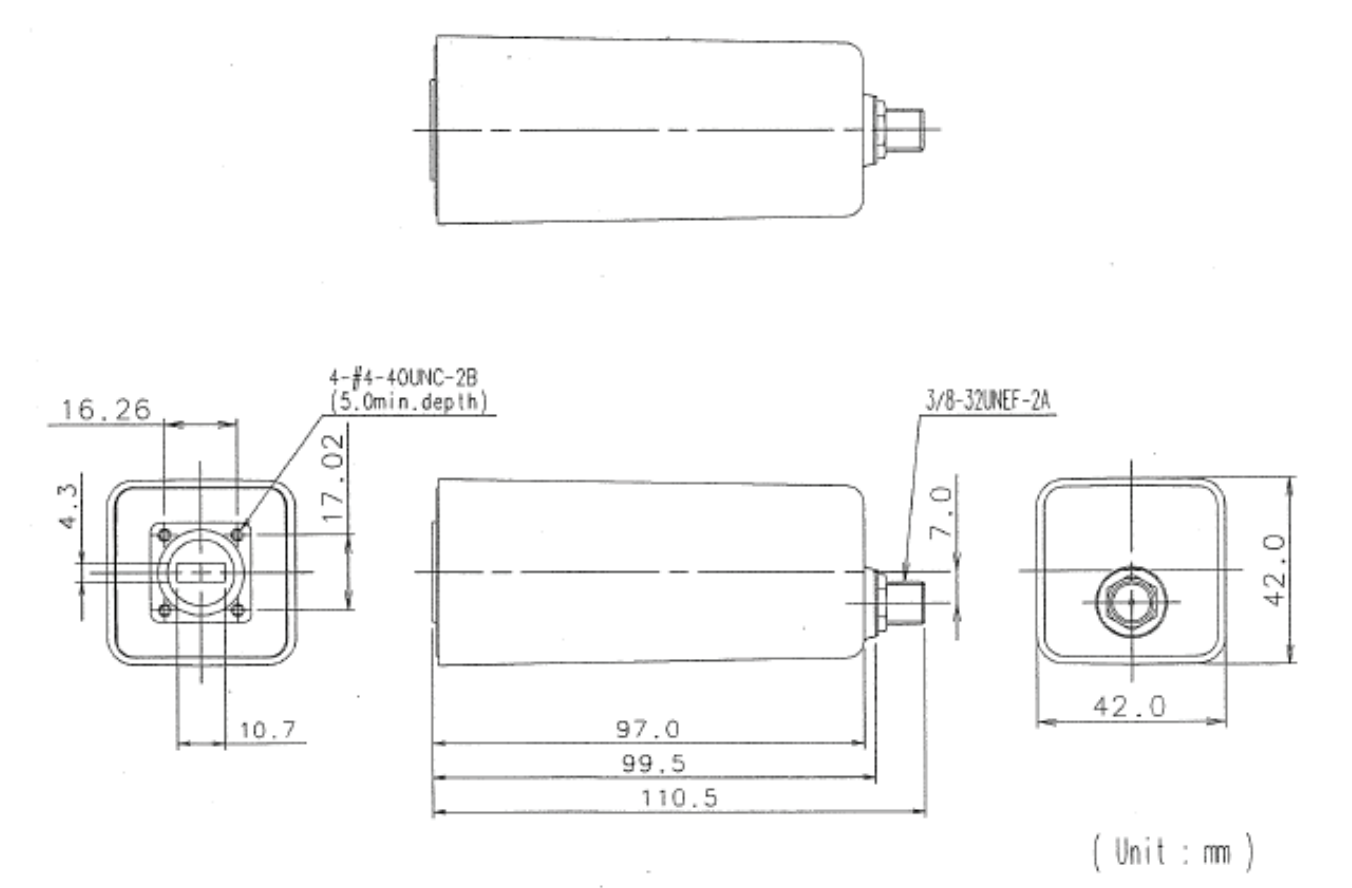

| PHYSICAL SPECIFICATIONS | |
| Product Height | 42 mm |
| Product Length | 111 mm |
| Product Weight | 0.35 kg |
| Product Width | 42 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.19 kg |
| Aluminium COO | JP |
| Aluminium Total Value | $ 0.475 |
| Country Of Origin | Made in Japan |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 50 mm |
| Package Length Case 1 | 130 mm |
| Package Width Case 1 | 50 mm |
| Unit Package Dimensions | 130 x 50 x 50 mm |
| Unit Package Weight | 0.3 kg |
| Warranty | 3 years |
Additional information
| Band | Ka-Band |
|---|---|
| Input Frequency Band 1 | 19.20 – 20.20 GHz |
| LO Frequency 1 | 18.25 GHz |
| LO Stability | ±60 kHz |
| LO Type | PLL |
| Noise Figure Max | 1.8 dB |
| Noise Figure Typ | 1.5 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 – 1950 MHz |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 50 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | 5 dB p-p |
| Input VSWR | 3.0 : 1 max. |
| Output P1db | + 3 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 1Khz Offset Max | -75 dBc/Hz |
| Phase Noise 10Khz Offset Max | -80 dBc/Hz |
| Phase Noise 100Khz Offset Max | -100 dBc/Hz |
| Current Consumption | 300 mA |
| Power Requirements | +15 to +24V DC |
| IF Connector | F-Connector |
| RF Input Connector | WR-42 waveguide grooved |
| Led Indicators | None |
| Temperature Operational | -40°C to +60°C |
| Product Height | 42 mm |
| Product Length | 111 mm |
| Product Weight | 0.35 kg |
| Product Width | 42 mm |
| Aluminium Content | 0.19 kg |
| Aluminium COO | JP |
| Aluminium Total Value | $ 0.475 |
| Country Of Origin | Made in Japan |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 50 mm |
| Package Length Case 1 | 130 mm |
| Package Width Case 1 | 50 mm |
| Unit Package Dimensions | 130 x 50 x 50 mm |
| Unit Package Weight | 0.3 kg |
| Warranty | 3 years |
